Automated storage and retrieval system (AS/RS) for pallets designed to boost productivity and increase warehouse capacity.

The product

The stacker crane: automated, speedy, error-free storage

Stacker cranes are machines designed to store and retrieve pallets automatically. They move in length, height, and depth to load and unload goods from racking structures in a highly agile, precise manner.

Mecalux stacker cranes are equipped with state-of-the-art technology, significantly increasing warehouse productivity and maximising space utilisation to boost storage capacity. Moreover, they help reduce errors and risks associated with manual operations.

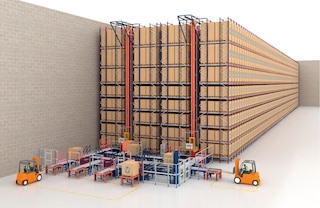

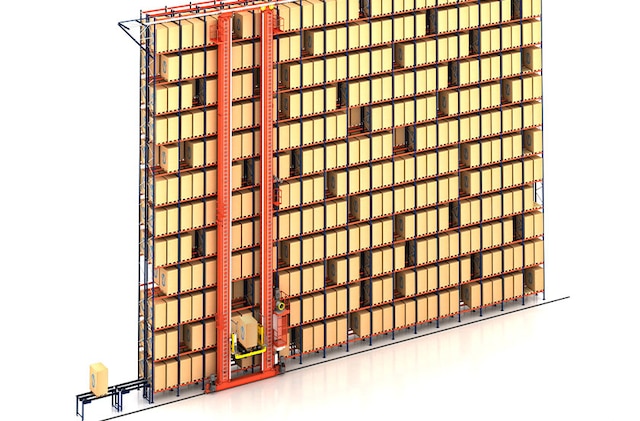

Stacker cranes automate pallet storage and retrieval

Advantages of stacker cranes in warehousing

  • Increased productivity: these machines can run continuously 24/7/365. Storage and retrieval are performed in the same movement (combined cycles), making the system highly agile.
  • Total automation: their autonomous operation streamlines warehouse management and eliminates errors linked to manual tasks.

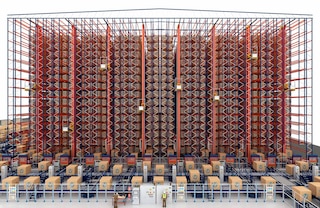

  • Maximum space utilisation: stacker cranes can reach up to 45 m high in aisles as narrow as 1.5 m wide.

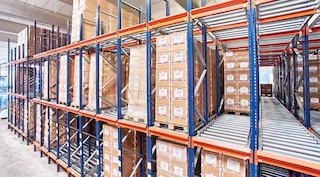

  • Double- and multi-depth: these machines can operate with high-density racking with deep channels — e.g., pallet flow racking or the Pallet Shuttle system — and with single- or double-deep racking.
  • High flexibility: Mecalux’s wide range of stacker cranes allows users to tailor the system to their load capacity, height and cycle time requirements.
  • Safety: stacker cranes handle pallets with extreme precision. In addition, they significantly reduce handling equipment traffic, enhancing warehouse safety.
  • Comprehensive solution: Mecalux designs, manufactures, installs and commissions all AS/RS components. These include the racking, stacker cranes, conveyors, and warehouse control and management systems (WCS and WMS).

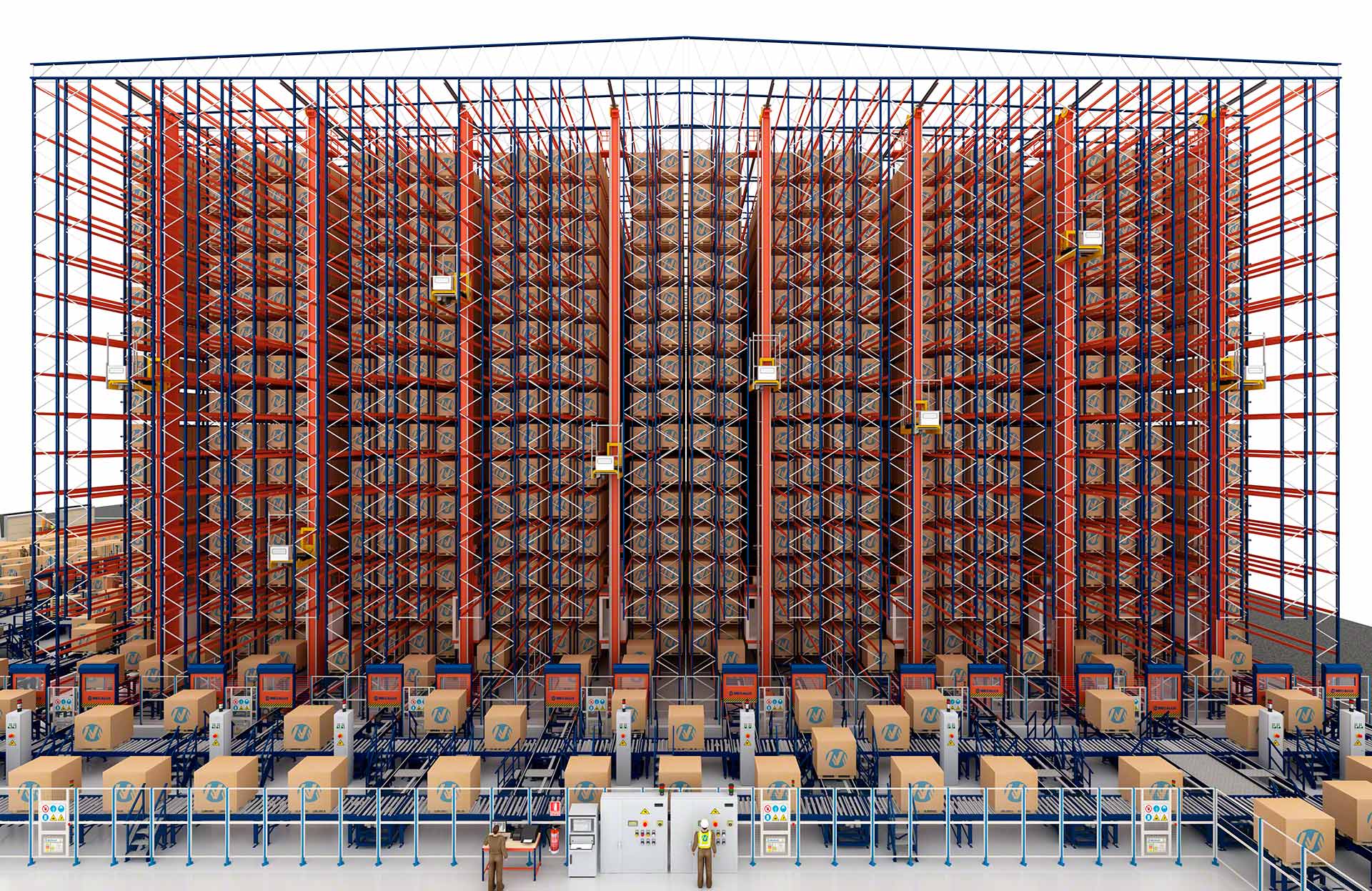

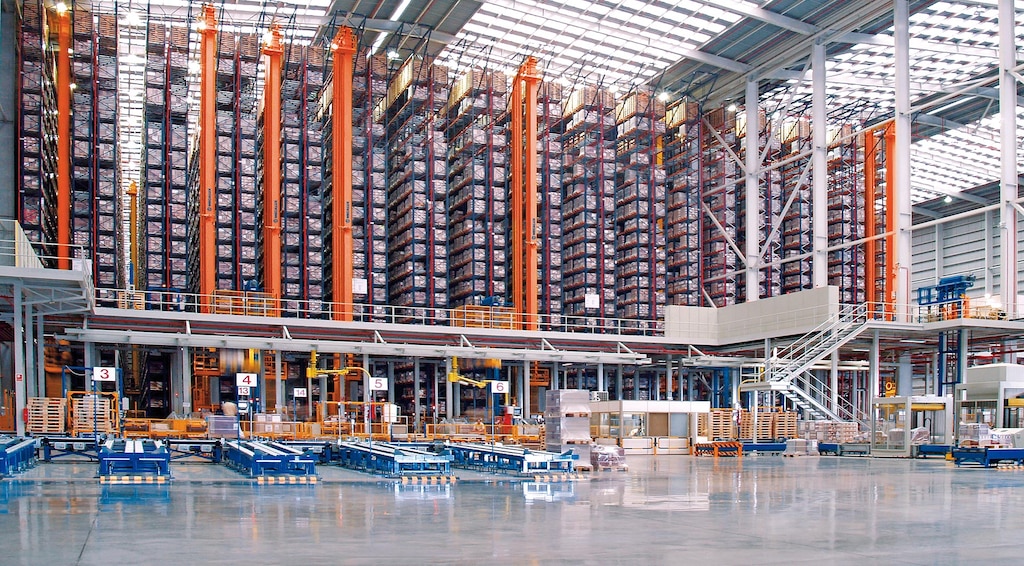

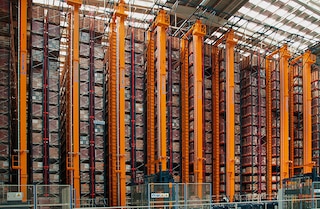

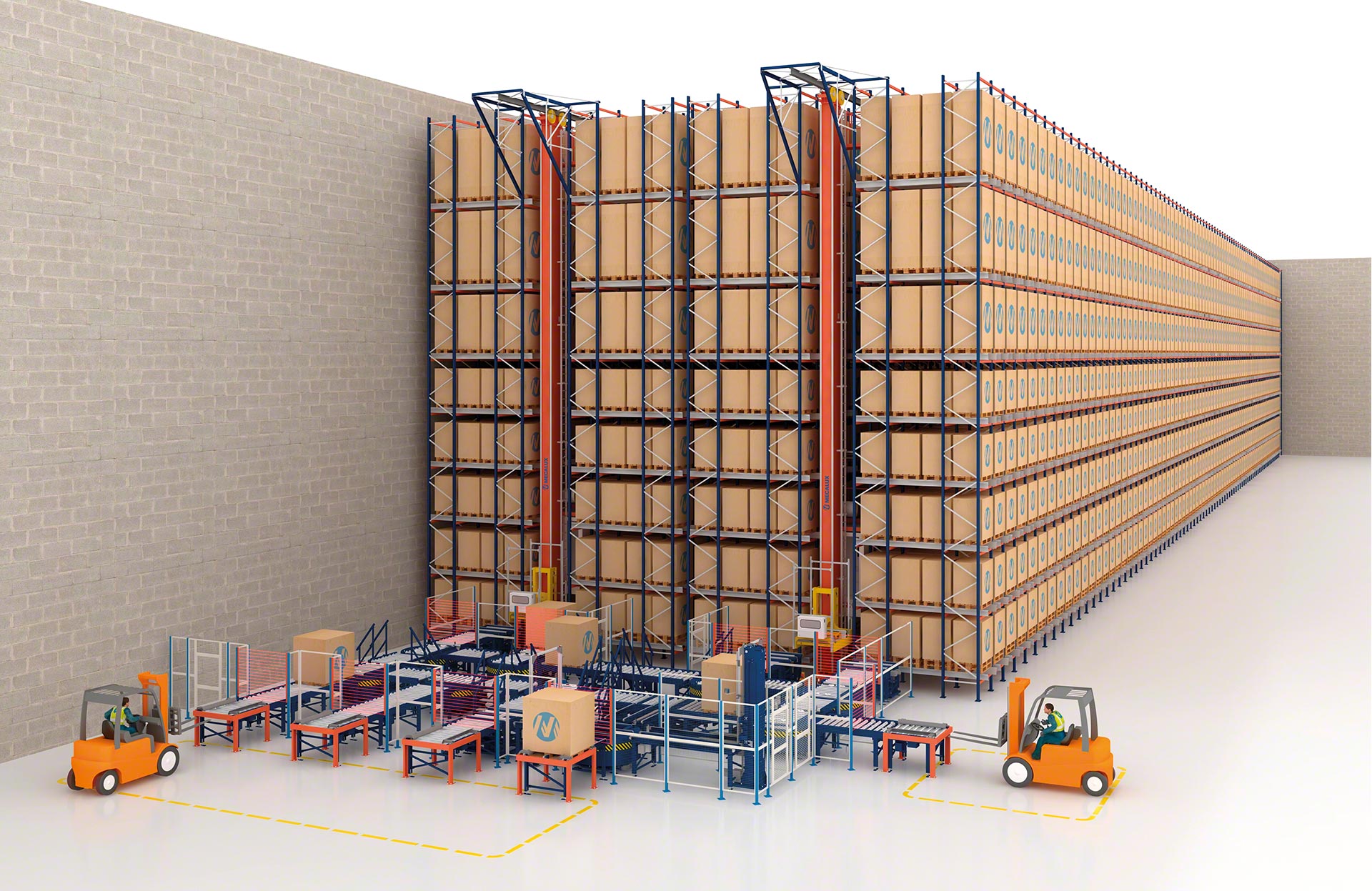

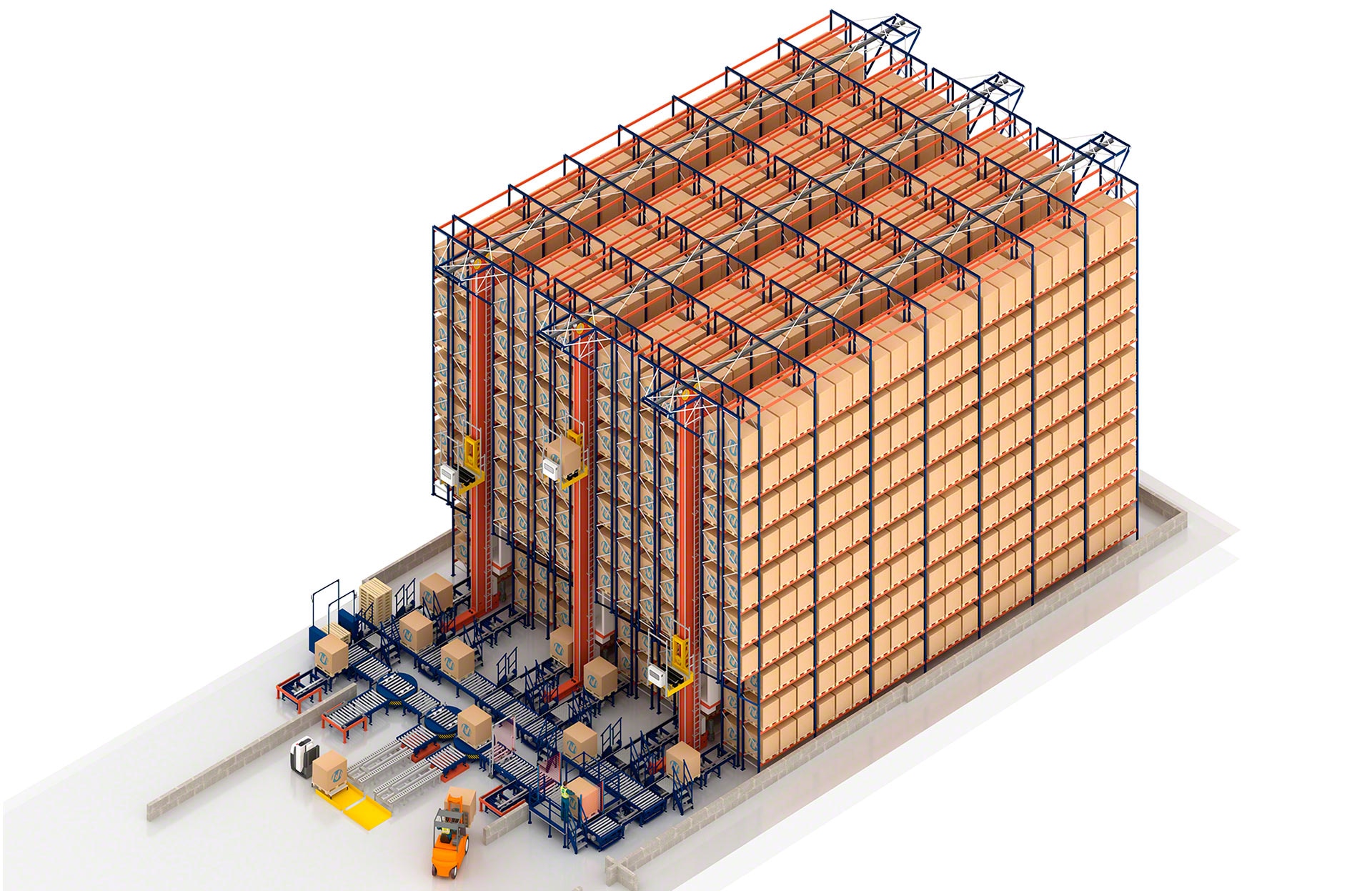

Stacker cranes greatly leverage warehouse space

We’ve shortened the time spent on fulfilling and distributing each order

Laboratorios Maverick
Hugo Marante Operations Department Coordinator
Laboratorios Maverick
(Tarragona, Spain)

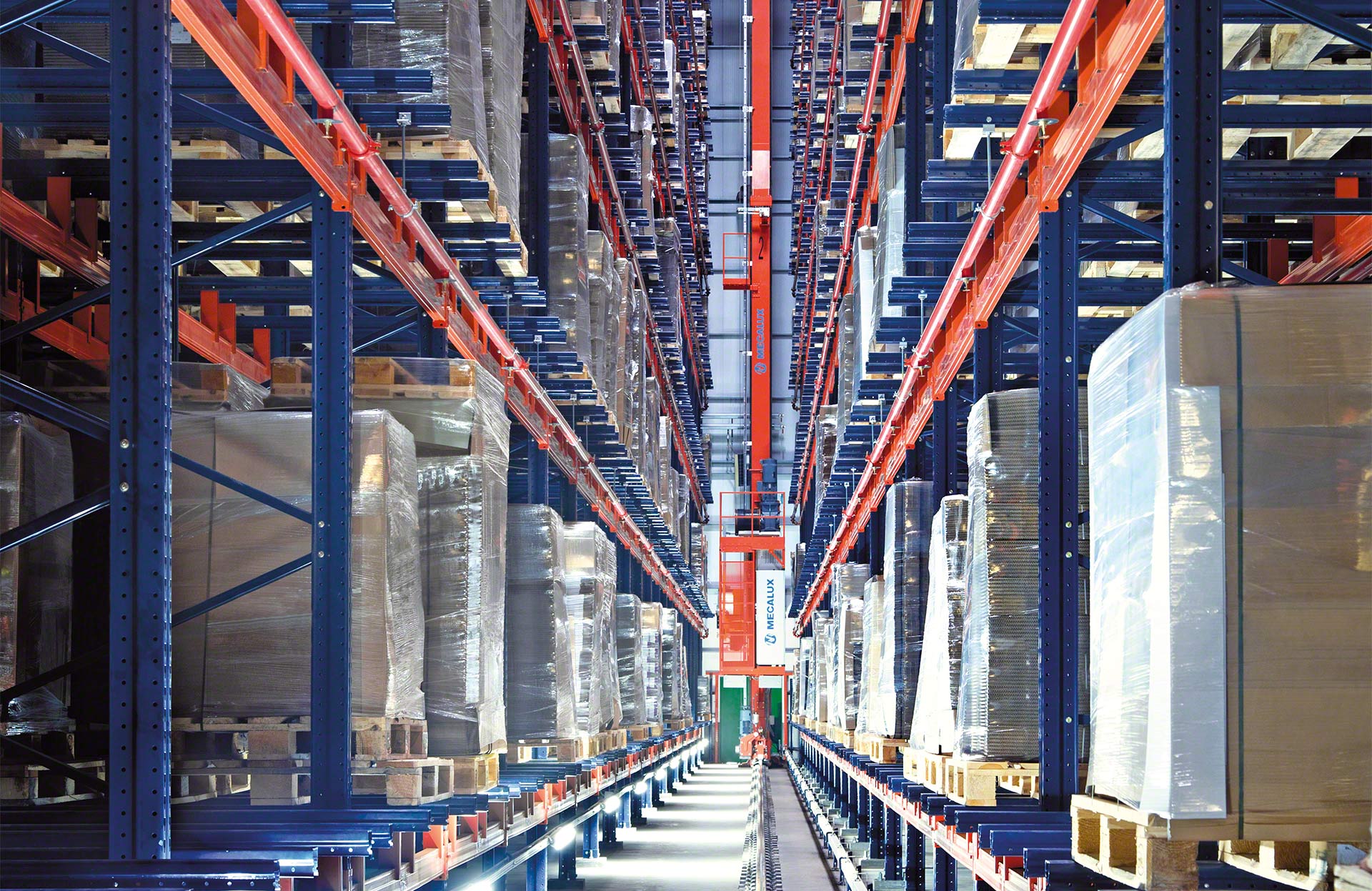

Applications of automatic stacker cranes

High-throughput system that adapts to the needs of different types of warehouses

Mecalux stacker cranes are versatile storage solutions that cater to the needs of multiple companies. They have proven their effectiveness across numerous industrial sectors, including the food, metallurgy, automotive and pharmaceutical industries.

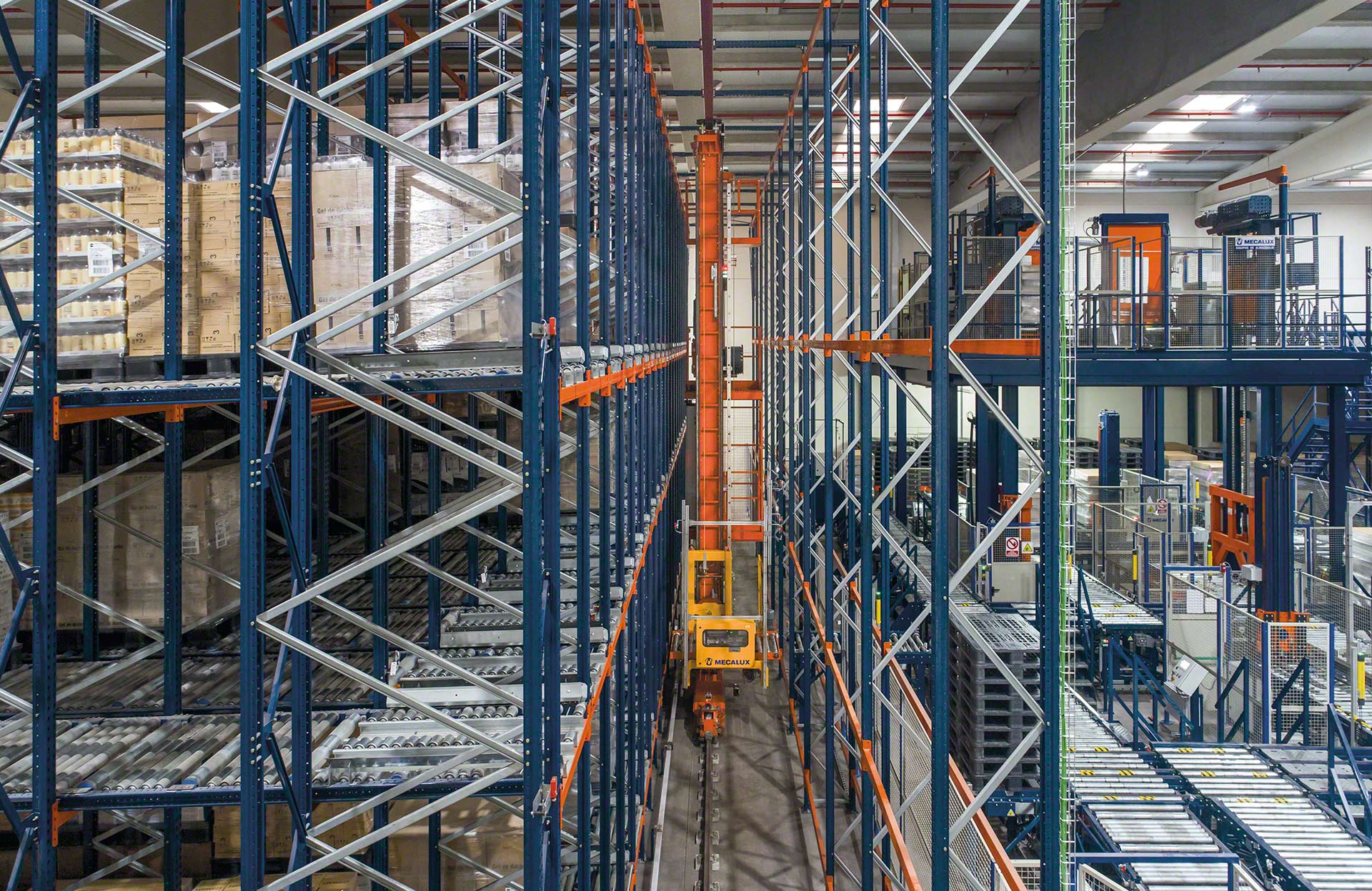

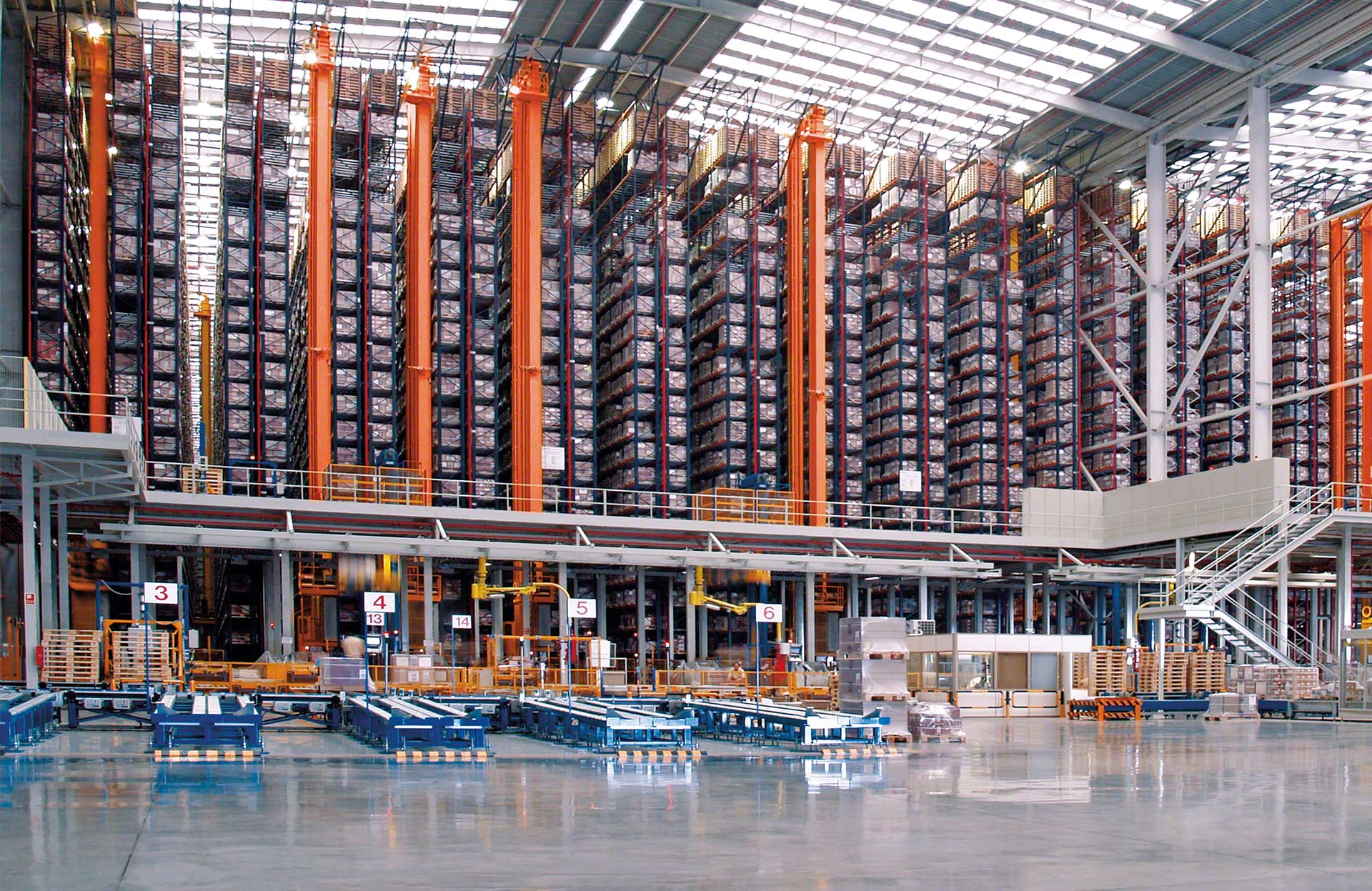

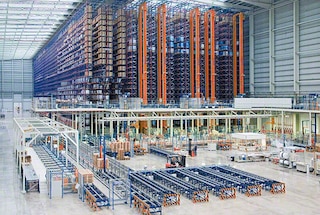

Stacker cranes are perfect for facilities with high-turnover SKUs

Warehouses with high inbound/outbound volumes

Automatic stacking cranes are an ideal solution for facilities with high-turnover SKUs and constant inflows and outflows.

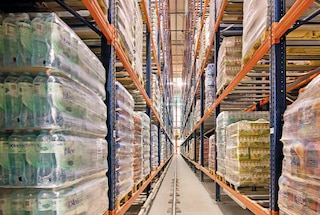

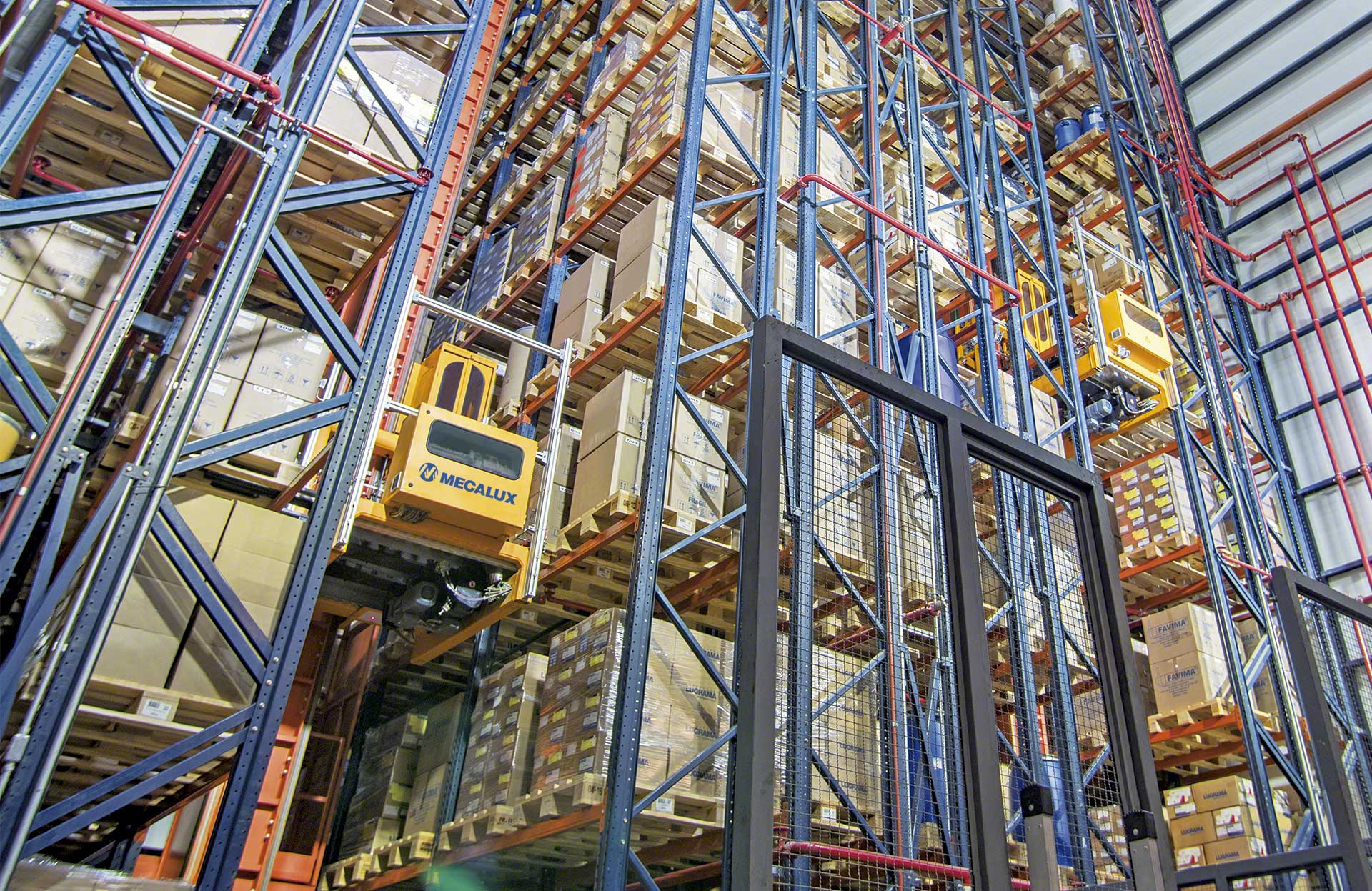

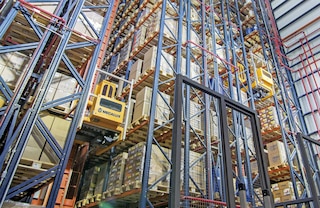

The incorporation of stacker cranes expands storage capacity

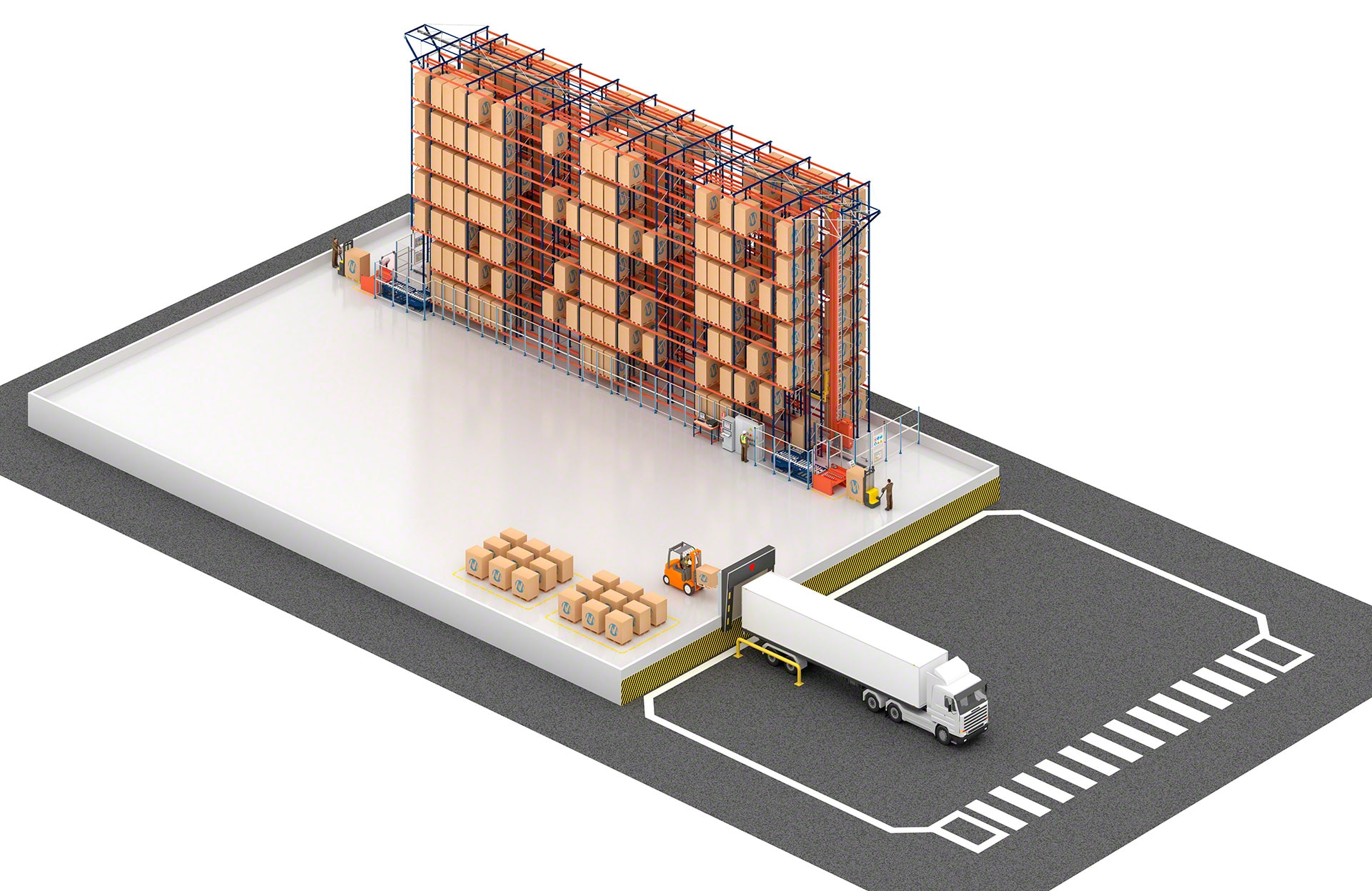

Companies requiring greater storage capacity

Stacker cranes make optimal use of warehouse space, both vertically and horizontally.

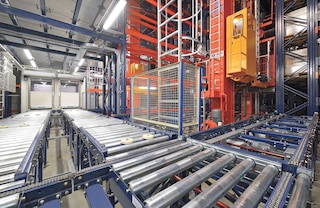

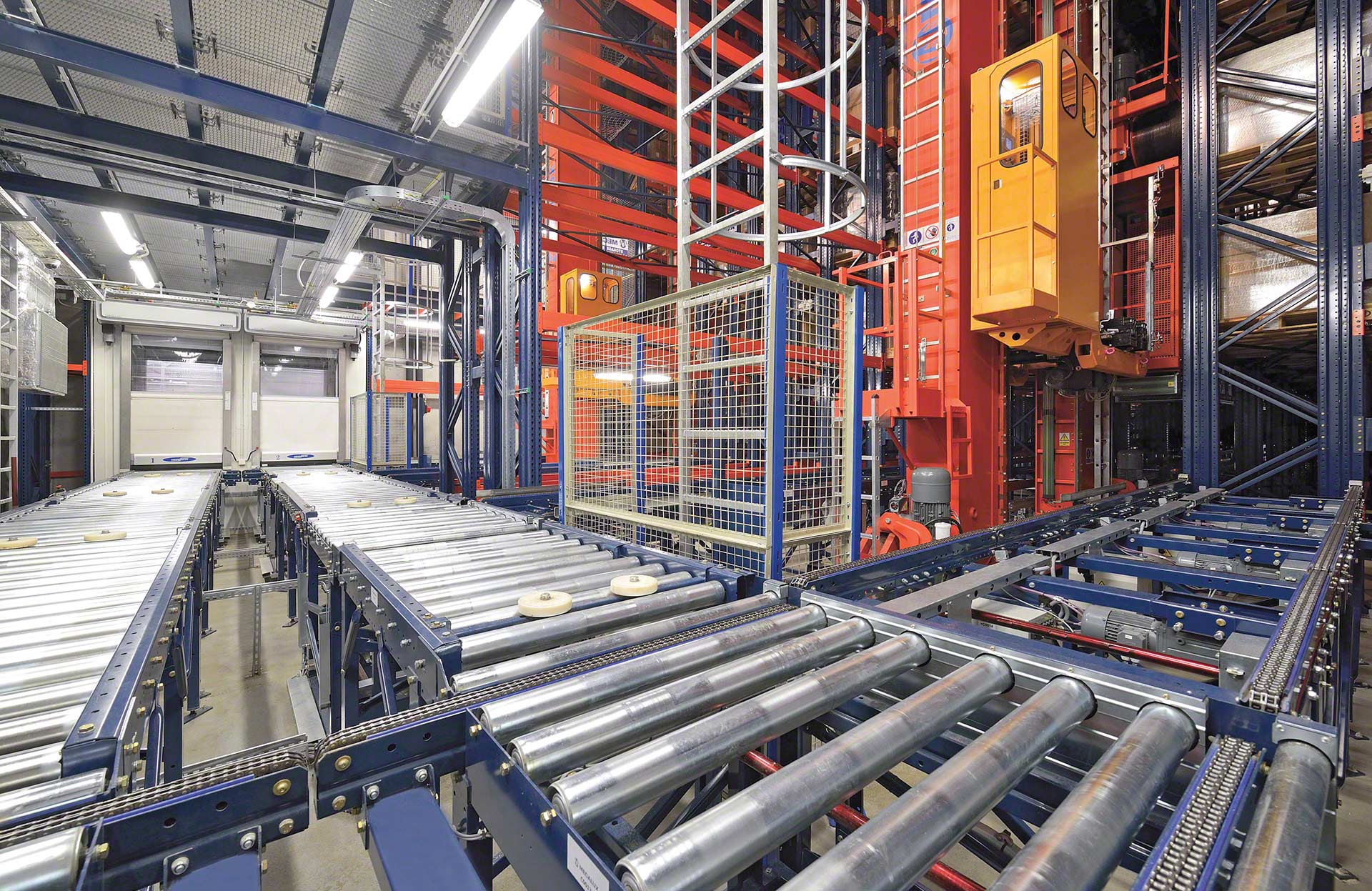

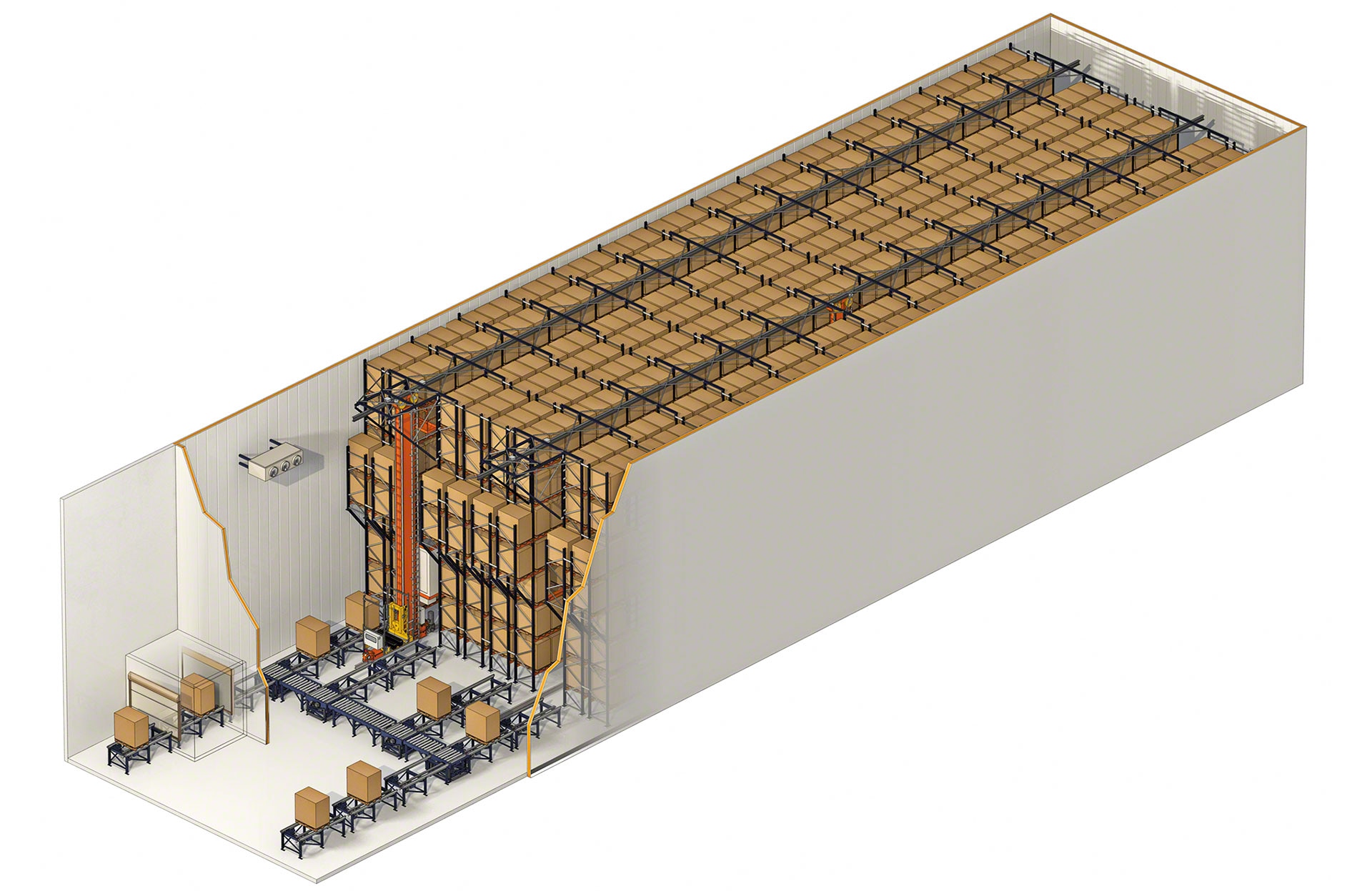

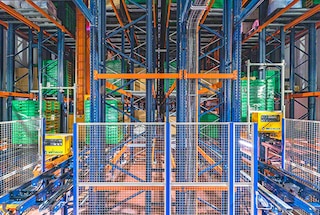

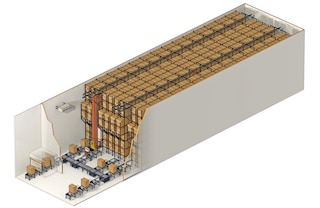

Stacker cranes are suitable for cold stores

Cold stores

These machines can operate in negative temperatures as low as -30 °C.

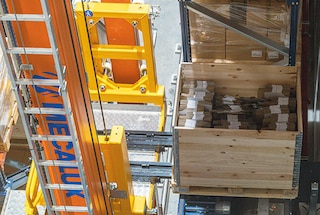

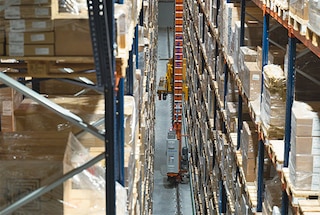

How does a stacker crane work?

Stacker cranes fully automate pallet storage and retrieval operations

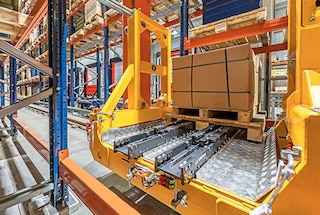

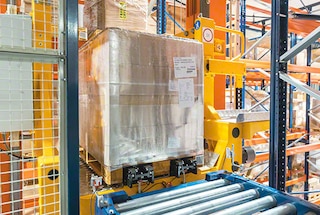

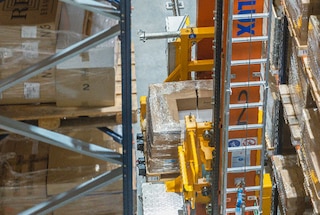

A stacker crane is a machine designed to perform 3 types of movements: longitudinal (to move along the aisle lengthwise), vertical (to operate at height) and transverse (for the forks to enter the racking depth-wise to deposit or remove pallets).

Testimonials

Novartis

Automation has enabled us to enhance our storage capacity and safety, cut maintenance and personnel costs and rigorously monitor product movements.

Tomasz Marchewa Supply Chain Manager
Novartis
(Stryków, Poland)
Nupik Internacional

During peak demand periods, we ship around 2,400 pallets a day. Automating our logistics operations has helped us shore up the increase in sales.

Eduard Pinosa Logistics Manager
Nupik Internacional
(Polinyà, Spain)
Natura Bissé

Automation has resulted in reduced logistics costs and more flexible production.

Pilar López Industrial Director
Natura Bissé
(Cerdanyola del Vallès, Spain)
Clairefontaine

By automating our logistics centre, we’ve improved our throughput and responsiveness. We’ve also lowered operating costs and errors caused by manual management.

Florian Challe Director of Logistics Operations
Clairefontaine
(Alsace, France)

Case studies

A 100% automated, turnkey warehouse for Würth in La Rioja

The German fastener, connector and assembly component company Würth has opened a new automated clad-rack warehouse in La Rioja (Spain). This very large installation means the company can supply its Wúrth stores throughout Spain, as well as customers who have purchased tools, drill bits, nuts and bolts online. Read more

Next-generation automated clad-rack warehouse: a sure bet to streamline of logistics processes at Cepsa

The energy company Cepsa entrusted Mecalux with the construction of a 37 m tall automated, turnkey warehouse in its lubricants production facility in the town of San Roque (Cádiz). The Mecalux Easy WMS warehouse management system has also been included in the set up, and is responsible for managing all the activities of the centre. Read more

Gioseppo's shoe warehouse: 1.6 million shoes and 3,500 orders a day

Gioseppo, a manufacturer and distributor of footwear and fashion accessories, has adapted its e-commerce logistics operations with Mecalux storage solutions. In Elche, Spain, the company has installed an automated warehouse in addition to multi-tier shelving and a mezzanine to fill thousands of orders. Read more

Gioseppo's shoe warehouse: 1.6 million shoes and 3,500 orders a day

French canned foods producer Sabarot leaps into automation

Sabarot, a French company dedicated to the production and distribution of cereals, has centralised its logistics operations with an AS/RS for pallets. Supervised by Easy WMS warehouse management software, the AS/RS is ready to be expanded if Sabarot's future needs require this. Read more

French canned foods producer Sabarot leaps into automation

British Sugar reaffirms its commitment to innovation with an AS/RS in Wissington

British Sugar, the UK’s main sugar producer, has installed an AS/RS (automated storage and retrieval system) from Mecalux in Europe’s largest sugar processing plant, producing 400,000 tonnes of sugar and 64,000 tonnes of ethanol a year. Read more

EcoWipes: automated logistics, 30% jump in productivity

Cosmetic and hygiene product manufacturer EcoWipes has connected its warehouse in Poland with its production lines automatically via conveyors. It has also installed live pallet racking with a stacker crane and Movirack mobile pallet racking to optimise its storage space. Read more

EcoWipes: automated logistics, 30% jump in productivity

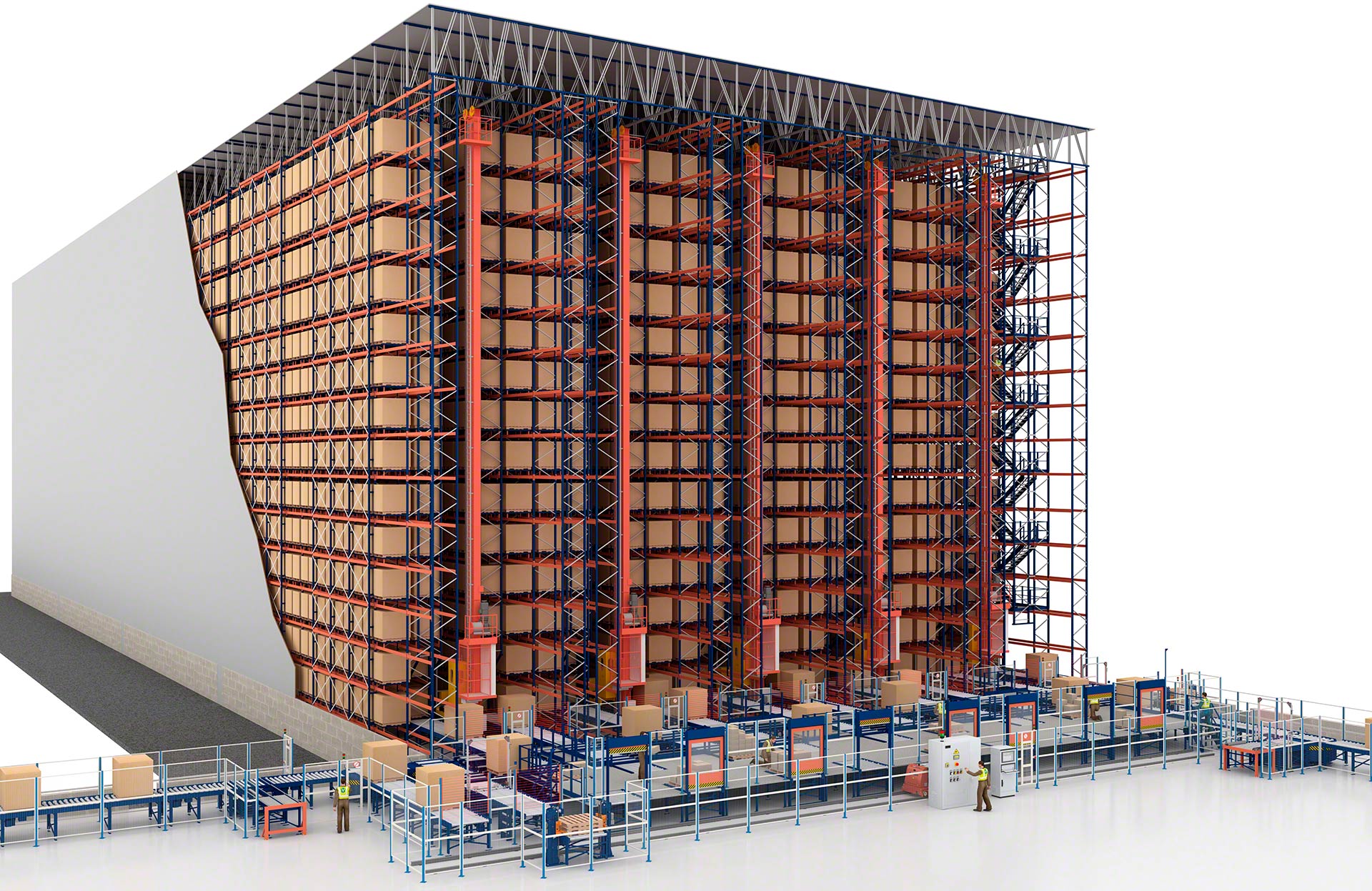

Mecalux builds one of the largest automated clad-rack warehouses in Europe

Case study of the automation of the Hayat Kimya warehouse in Turkey developed by Mecalux and other examples of storage systems. Read more

See more case studies

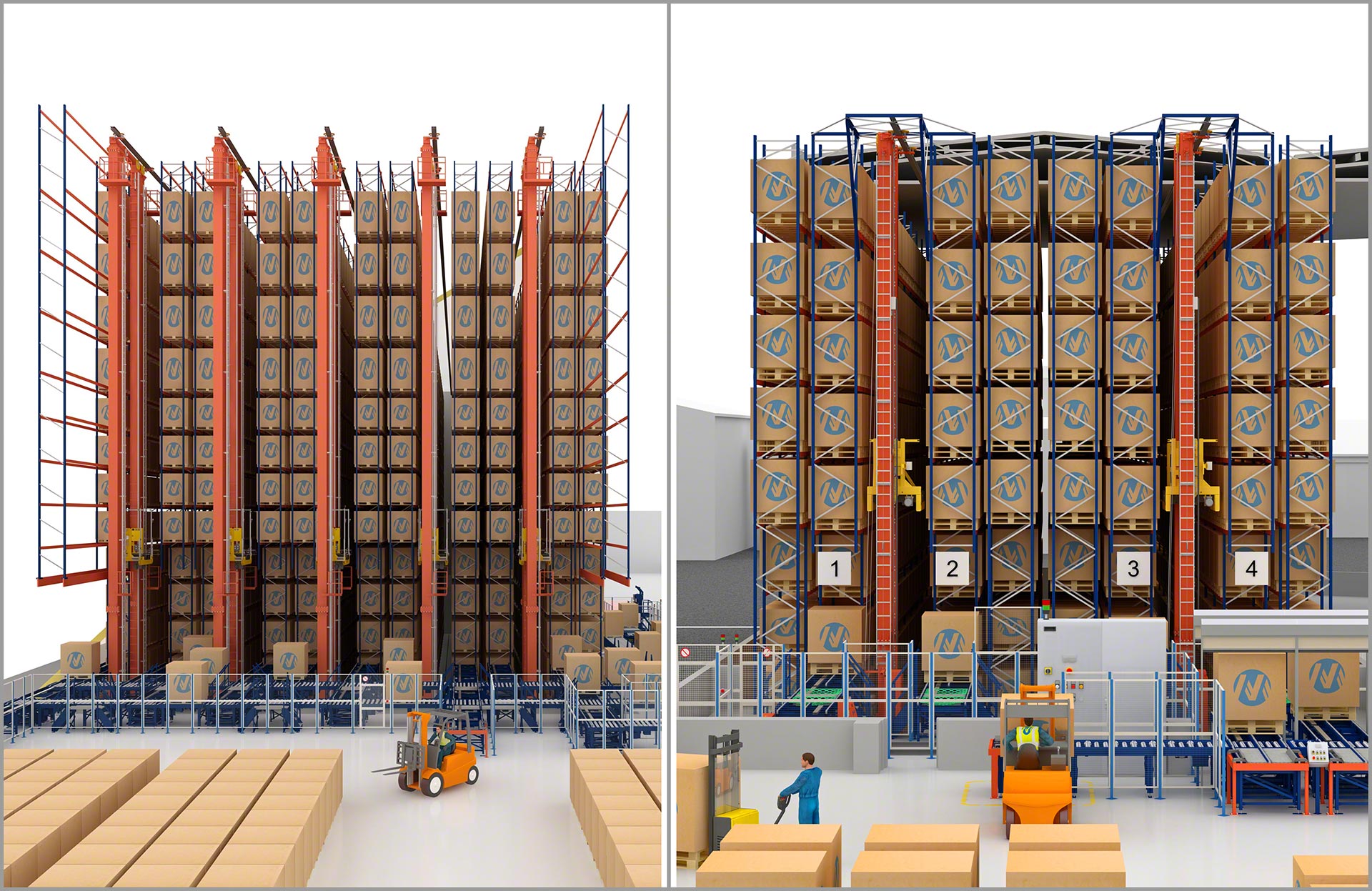

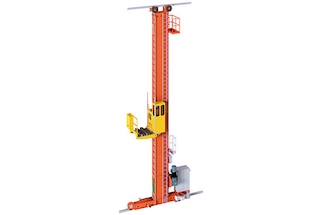

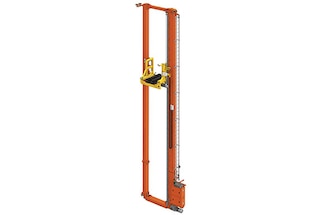

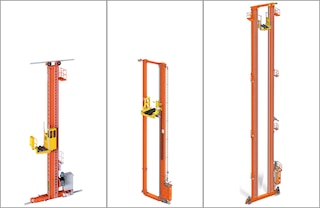

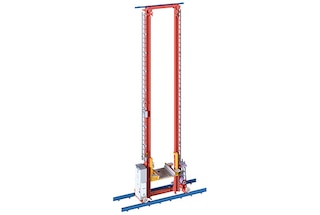

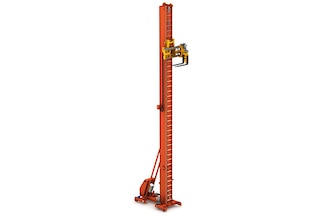

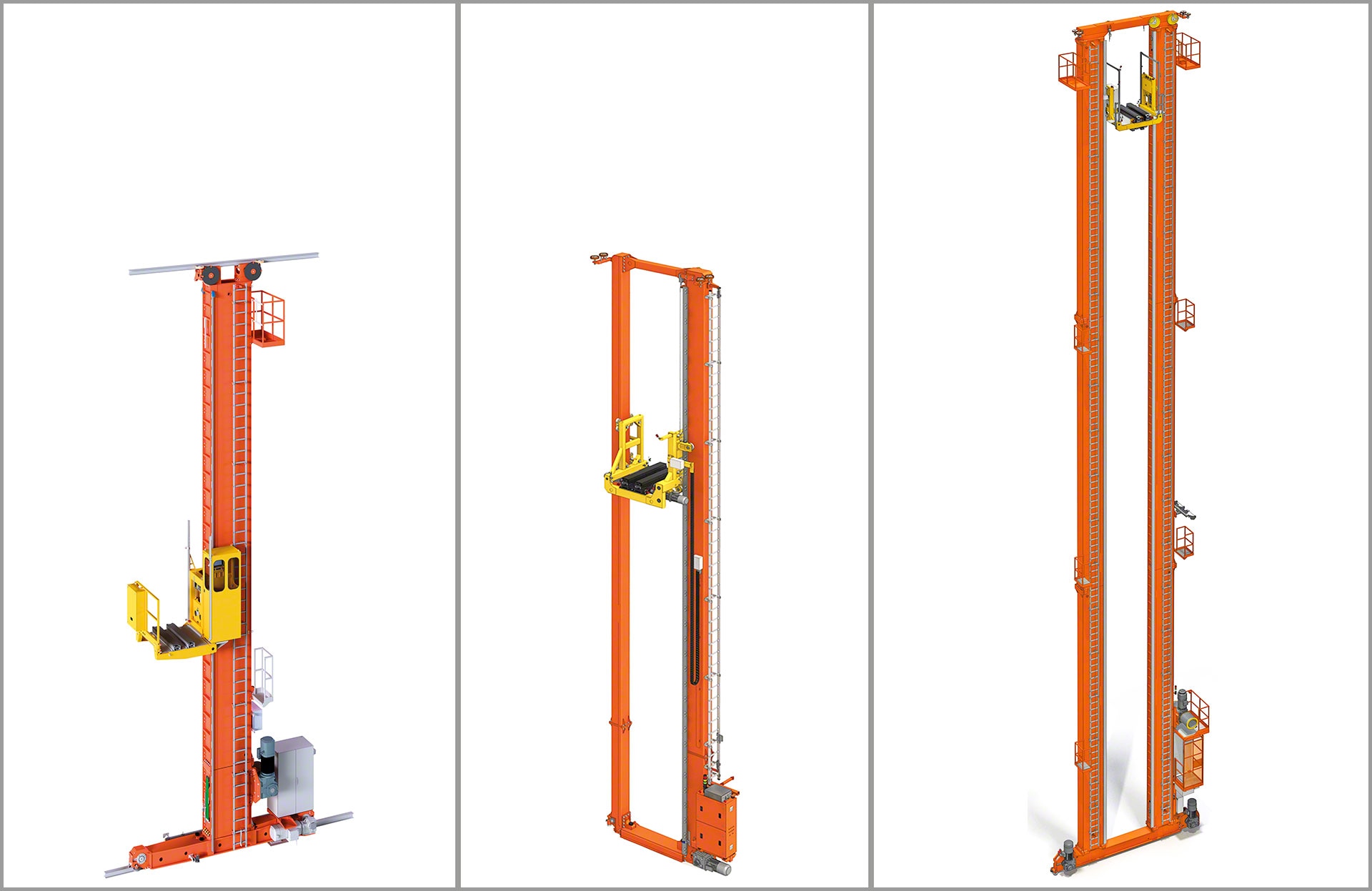

Automated stacker crane models

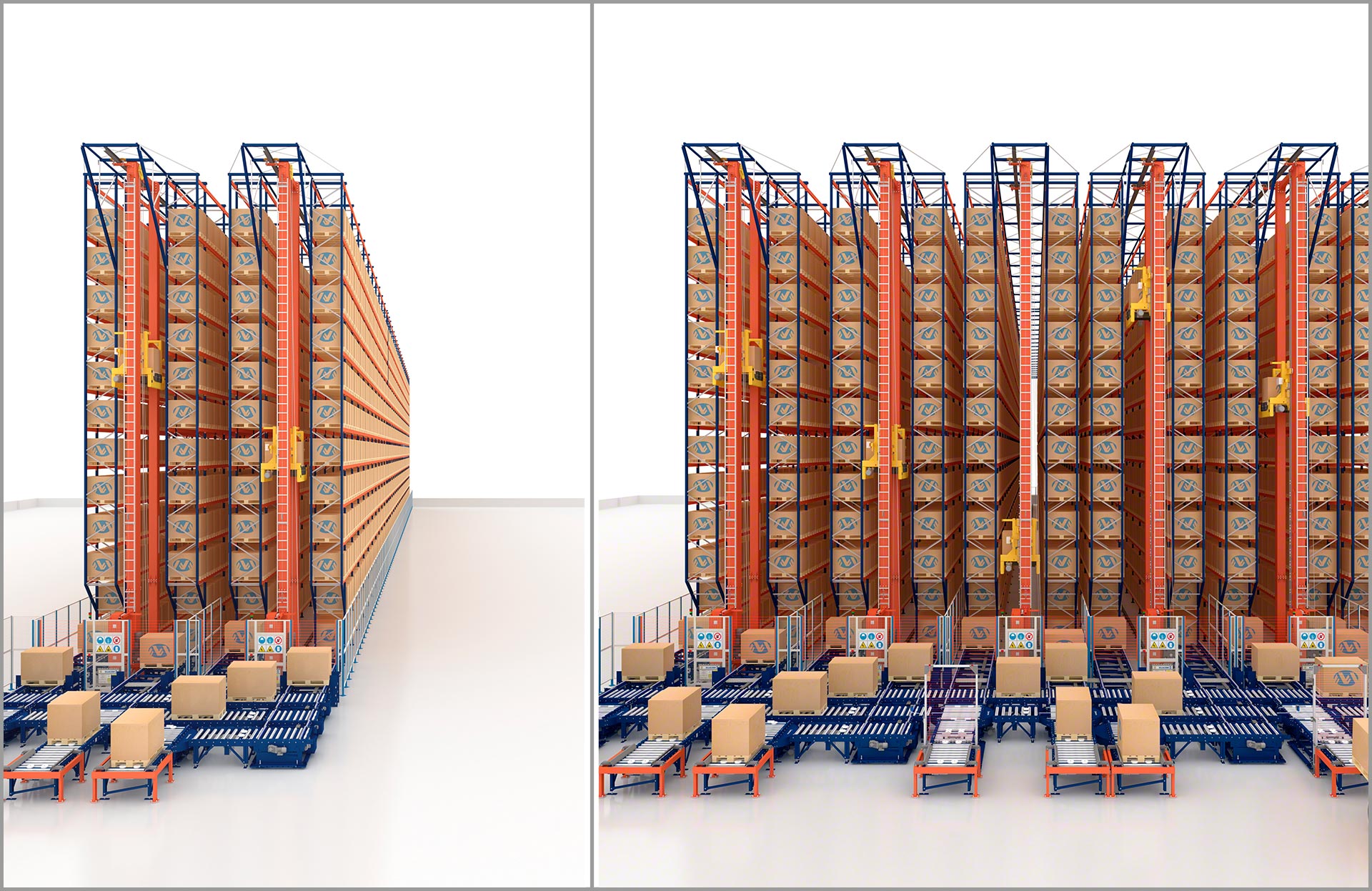

Wide range of stacker cranes easily adaptable to specific warehouse needs

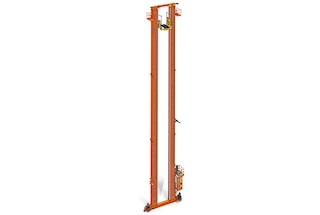

Mecalux’s single- and twin-mast automatic stacker cranes cover a broad spectrum of requirements. Thanks to this versatility, there is a suitable model for any load capacity, construction height and necessary cycle times.

Components of pallet stacker cranes

The design of stacker cranes for pallets minimises the forces transmitted to their supporting framework. This prevents damage to the AS/RS racking and structure in the long term.

A stacker crane is a fully automatic high-performance machine composed of various elements. These include masts, upper and lower guide bases, a lifting cradle, an extraction system and a hoisting mechanism.

The extraction system used will vary based on the application, the type of load to be handled, the arrangement of the racking and even the operational requirements. In general, there are 3 types: telescopic forks (single- and double-deep), the Pallet Shuttle and on-board conveyors.

Mecalux stacker cranes are fitted with a set of components designed to maximise the safety of the AS/RS.

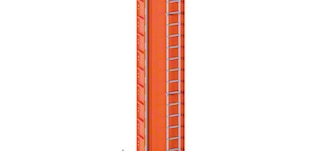

Masts constitute the main axis of the pallet stacker crane

Masts

Made of high-strength steel sheet metal, these constitute the stacker crane’s main axis. The lifting cradle, which supports the pallet, travels along the masts.

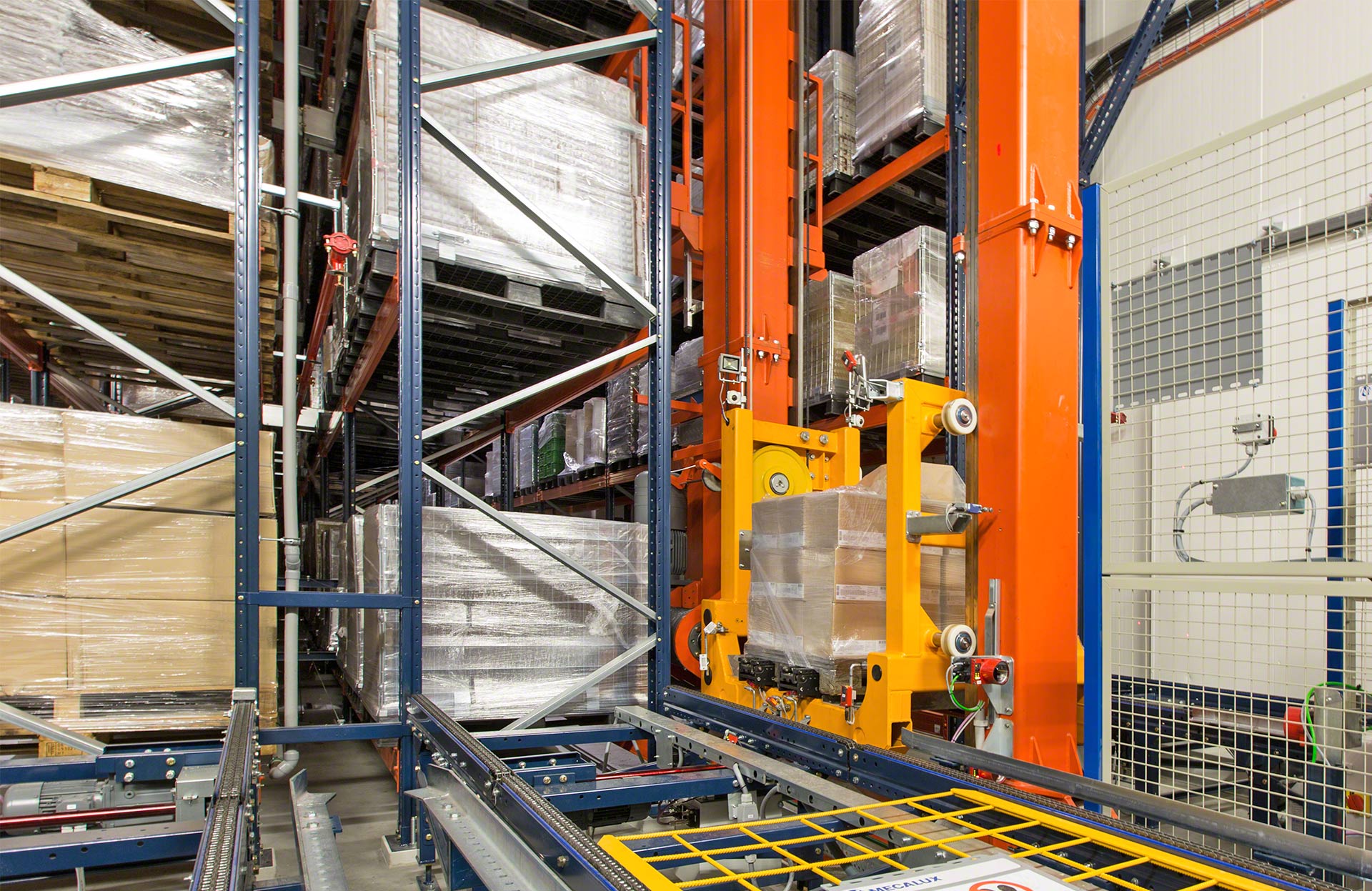

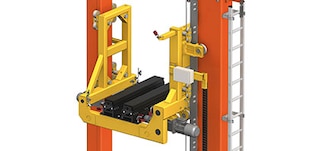

The stacker crane’s lifting cradle moves loads vertically

Lifting cradle

This moves loads vertically and performs storage and retrieval cycles through its extraction system.

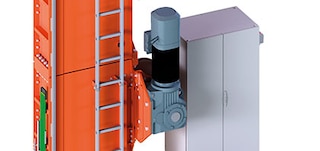

The hoisting mechanism enables the vertical movement of the stacker crane’s cradle

Hoisting mechanism

Device with an AC motor that drives the lifting cradle in its vertical movement.

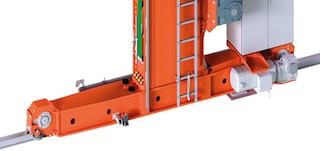

The lower guide base allows the stacker crane to move longitudinally

Lower guide base

Box-shaped structure equipped with a drive wheel and a freewheel. It enables the stacker crane to move along the aisle longitudinally.

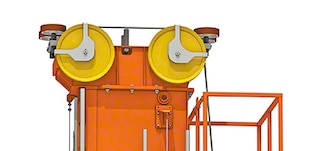

The upper guide base lends stability to the stacker crane

Upper guide base

Ensures the stability of the stacker crane and dampens noise and vibrations resulting from its high-speed movement.

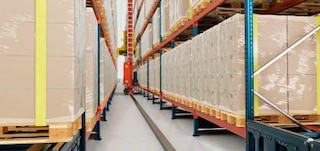

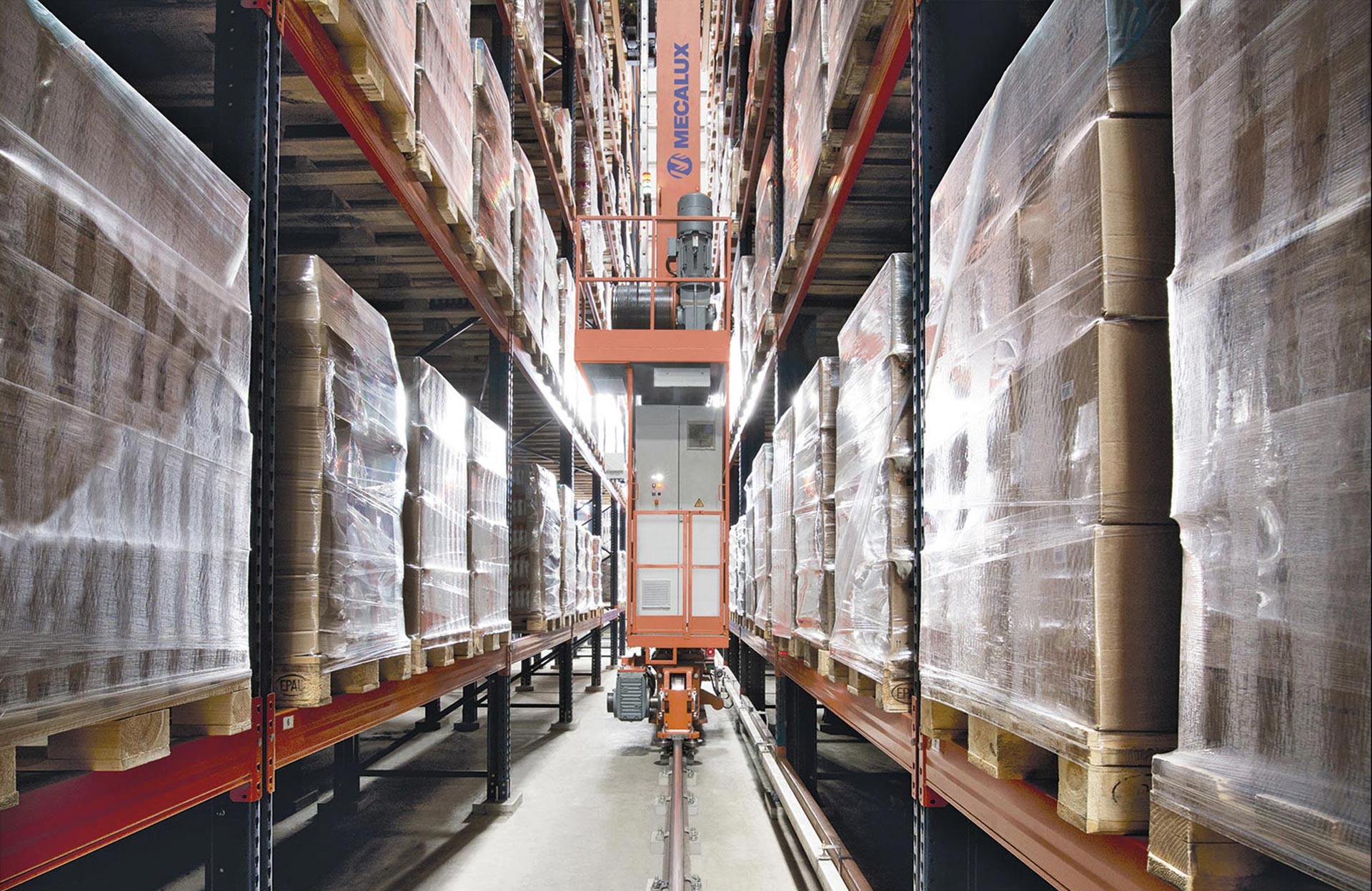

The aisle equipment for stacker cranes includes the bottom and top guide rails

Aisle equipment

Aisles are outfitted with a bottom guide rail, top guide rail, safety equipment, electrical supply, data transmission and positioning systems.

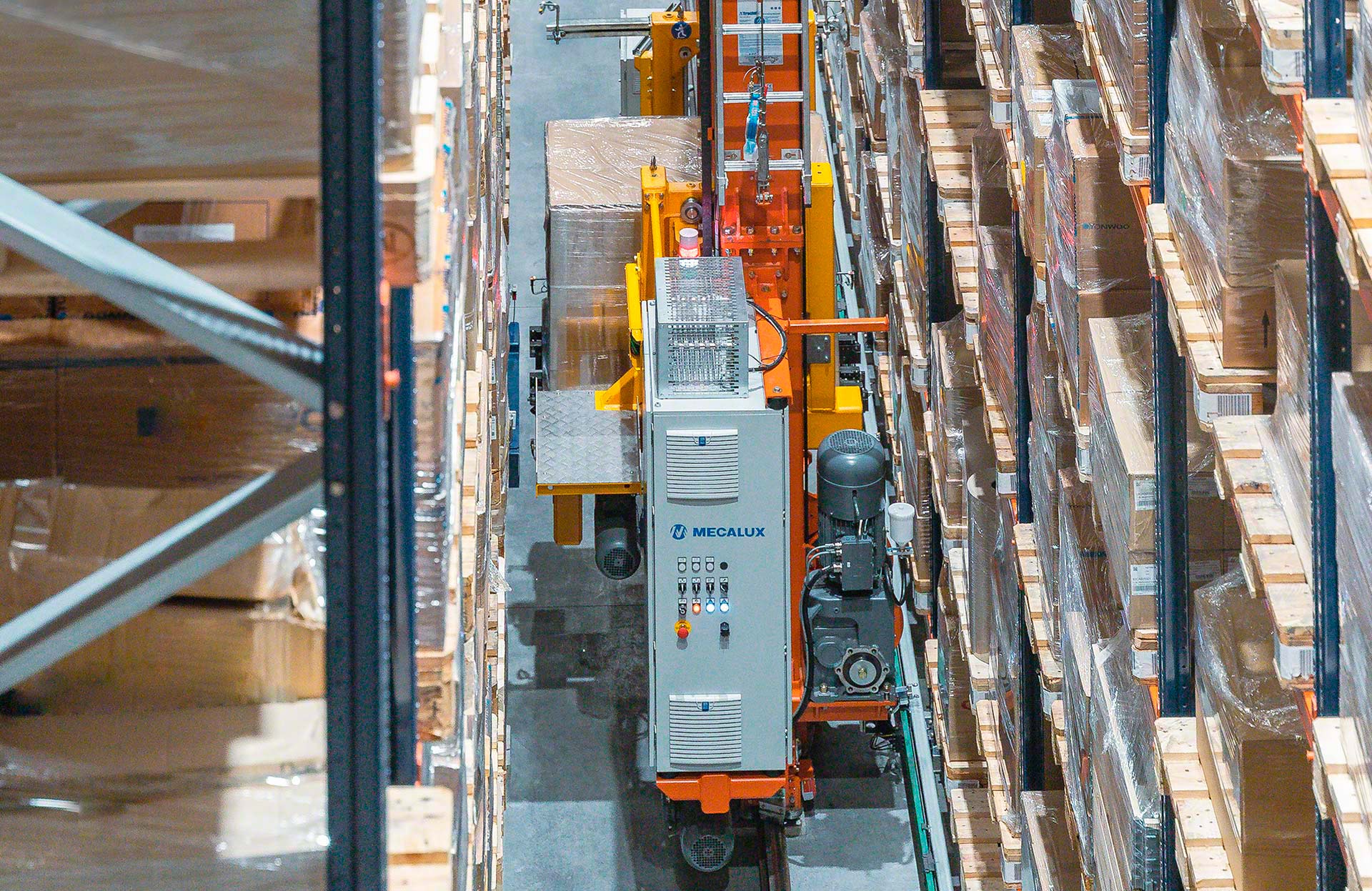

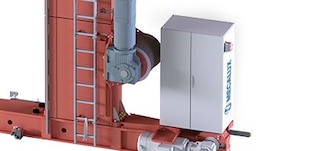

The electrical cabinet supplies electricity to the stacker crane

Electrical cabinet

Located next to the mast, this supplies the stacker crane with electrical power.

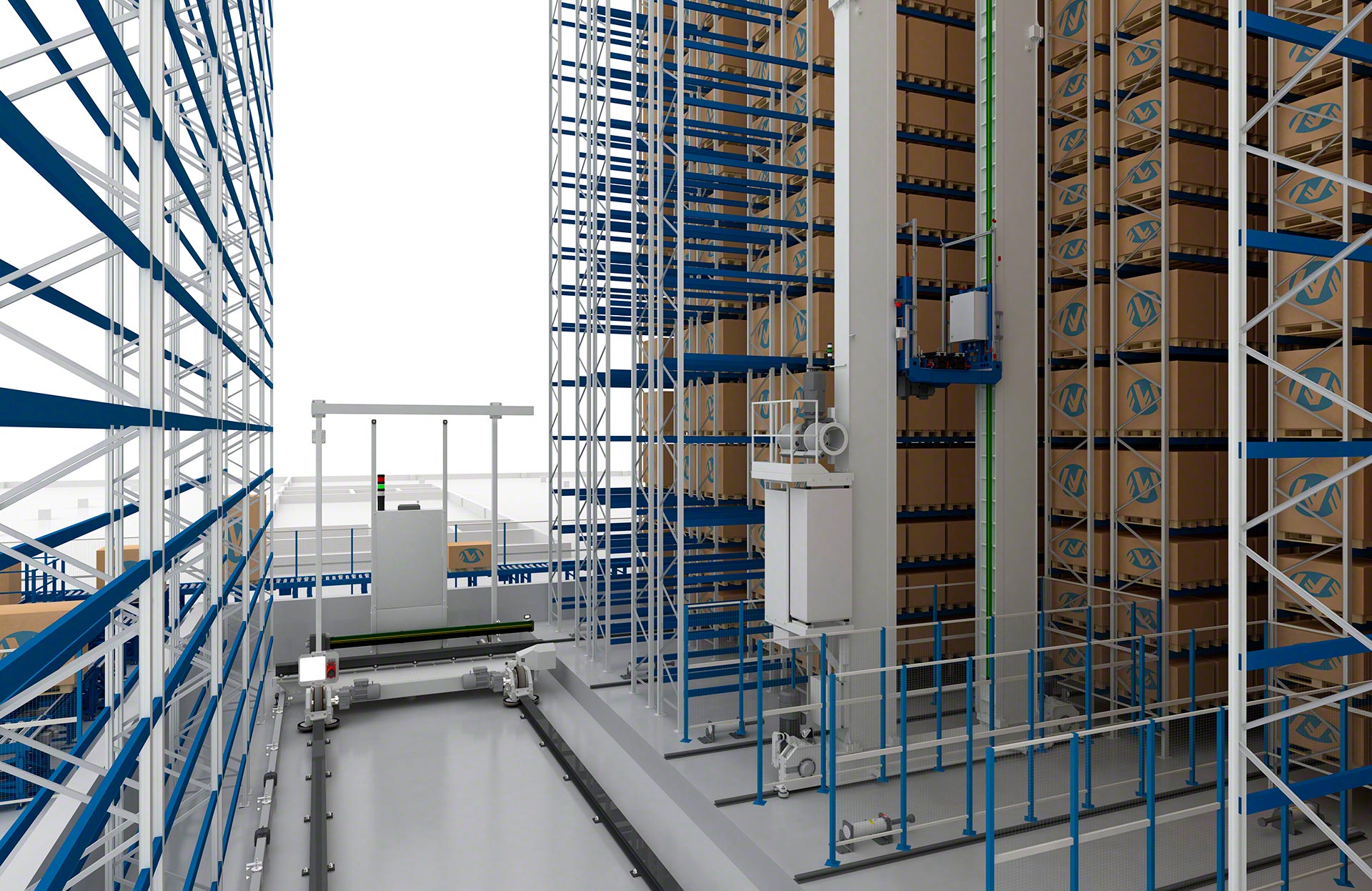

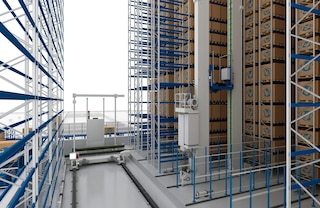

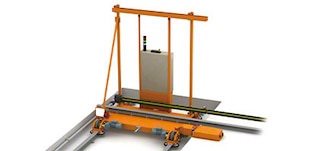

The transfer bridge moves stacker cranes from one aisle to another

Transfer bridge

Component responsible for moving stacker cranes from one aisle to another in facilities requiring this operation. The stacker crane positions itself on the bridge, where it is anchored. Then, it moves laterally to the destination aisle, where the transfer takes place.

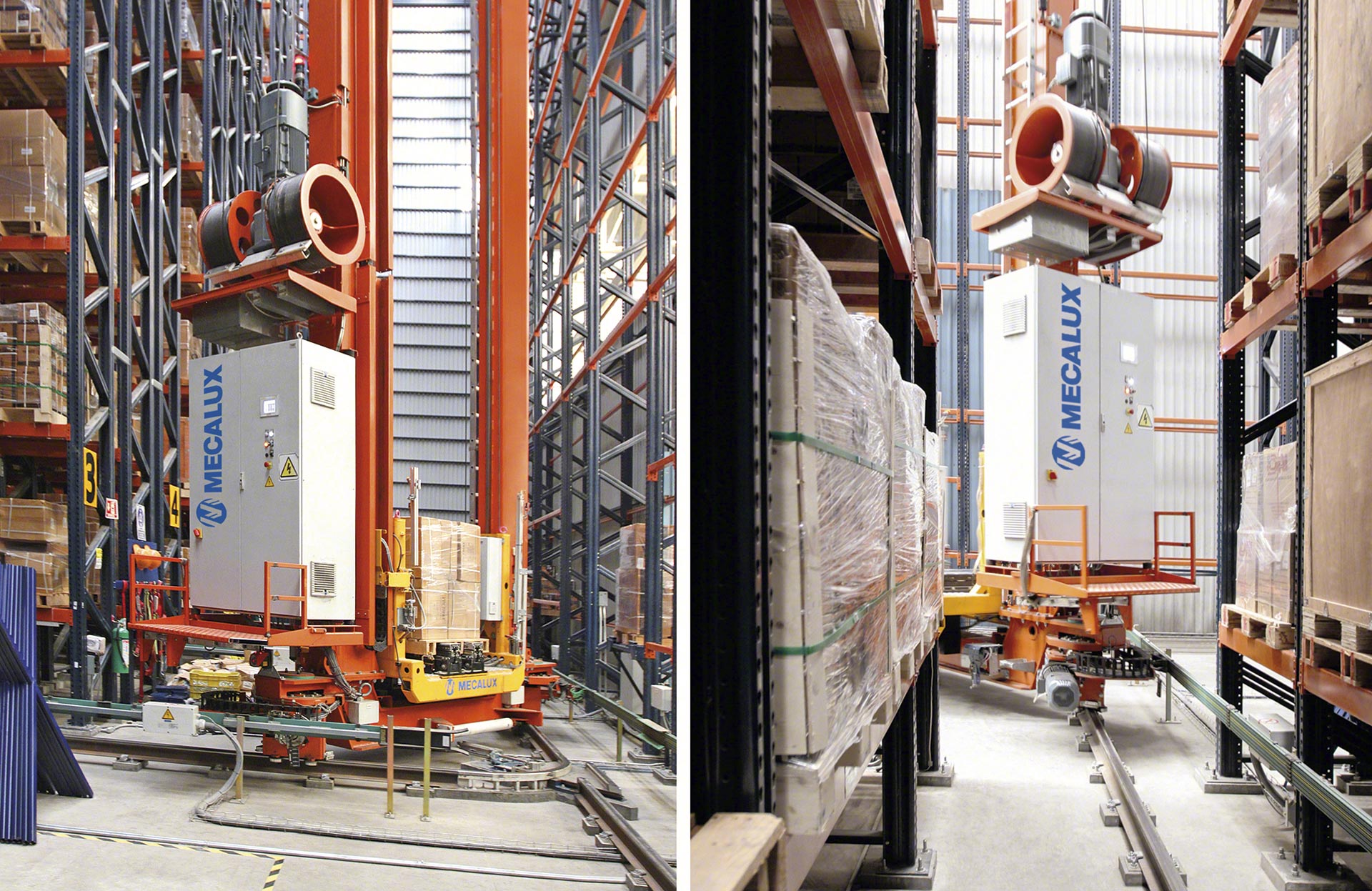

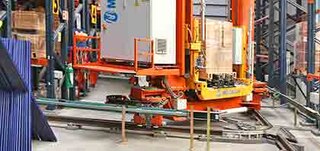

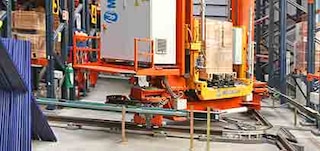

Stacker cranes can also change aisles via the curved track system

Curved track system

Alternative solution to the transfer bridge in which the stacker crane carries out the aisle-change manoeuvre by means of a railway-type switch.

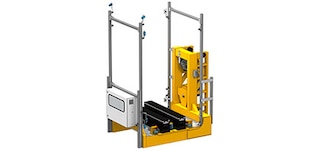

Single-deep forks are used with single-deep racking

Single-deep telescopic forks

This handling mechanism stores and retrieves pallets in single-deep racking.

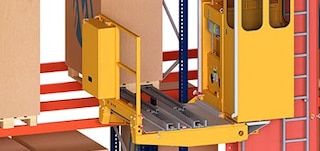

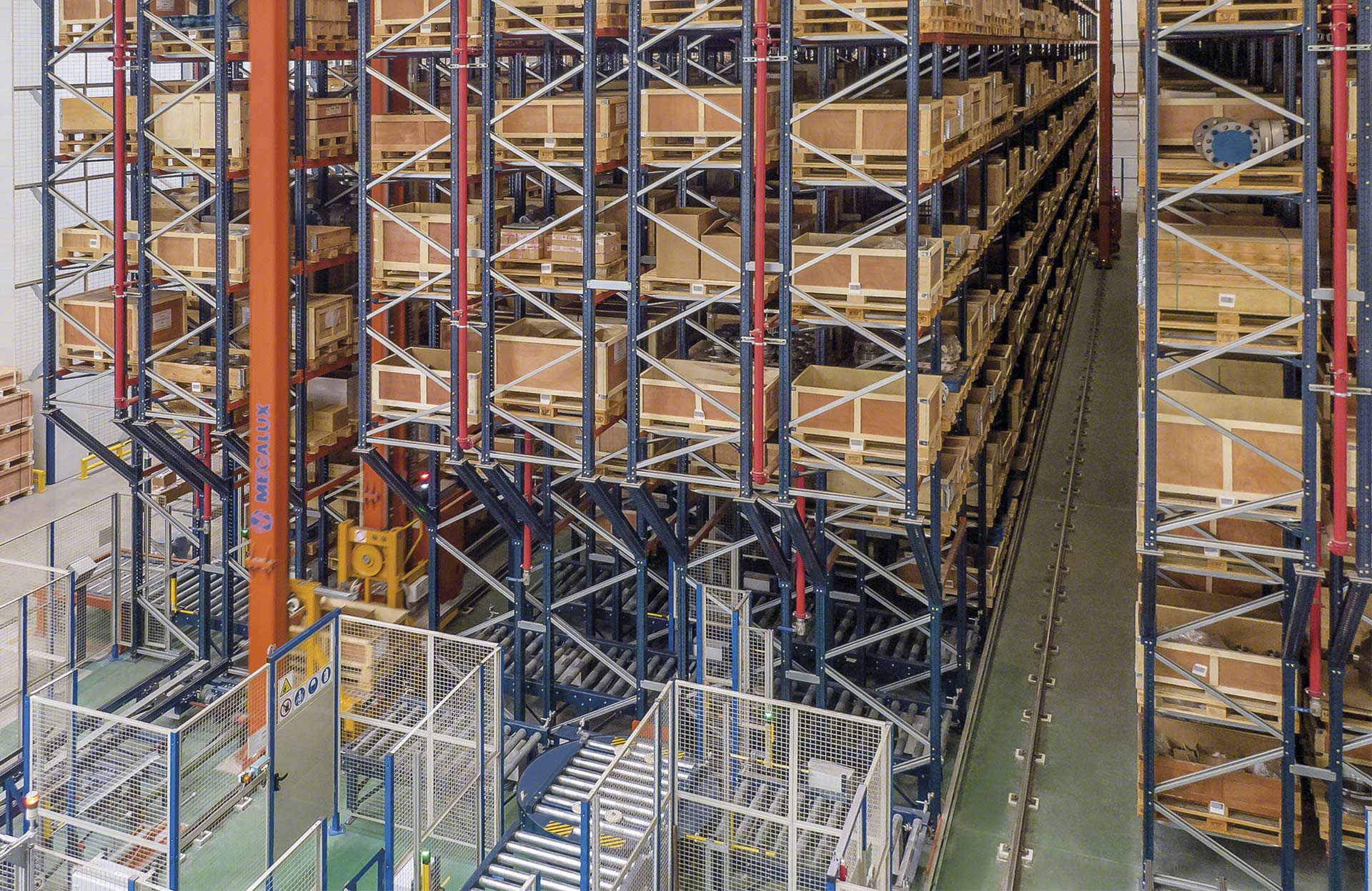

Double-deep forks are employed for double-deep racking

Double-deep telescopic forks

This extraction system is employed for loading and unloading pallets in double-deep racking.

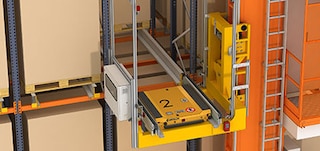

The Pallet Shuttle enables pallets to be stored in deep channels

Pallet Shuttle

Autonomous shuttle car capable of lifting, moving and depositing pallets inside very long channels. The cradle is prepared to house the Pallet Shuttle and is equipped with motorised chains to transfer pallets from/to the incoming and outgoing conveyors.

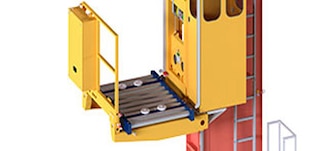

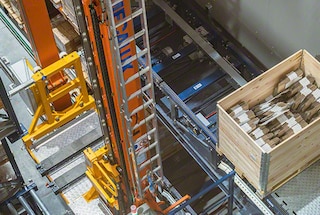

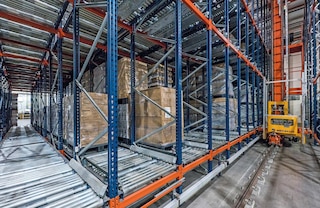

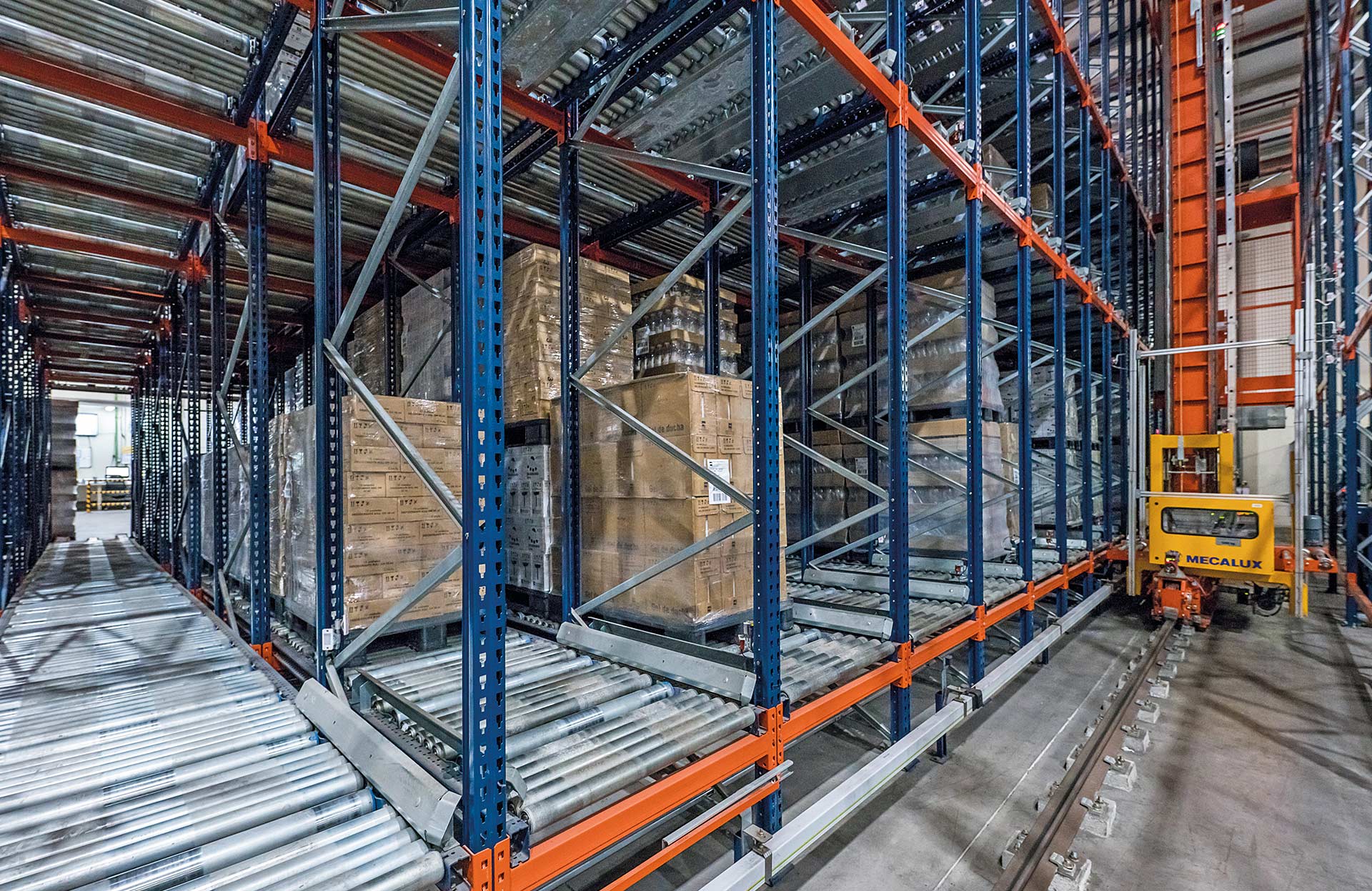

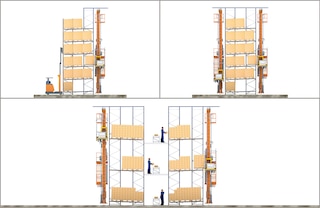

The on-board conveyor is the extraction system for stacker cranes that work with pallet flow racking

On-board conveyor

Extraction system consisting of a platform with motorised rollers used in stacker cranes that feed pallet flow racking.

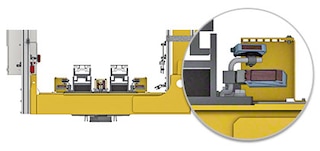

The stacker crane’s lifting cradle is equipped with different safety components

Lifting cradle safety features

The cradle incorporates several safety elements: photocells (to verify maximum load dimensions, confirm empty locations and identify the exact position of the beams), load cells to detect excess weight, a system for checking fork and load centring, and a webcam.

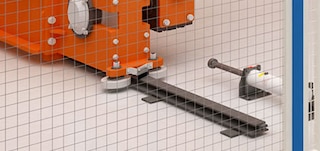

Aisle safety equipment includes hydraulic buffers

Aisle safety equipment

The aisle features various safety elements, including the stacker crane’s safe speed control devices. Furthermore, hydraulic buffers positioned at the ends of the aisles are designed to absorb any potential impact from the stacker crane.

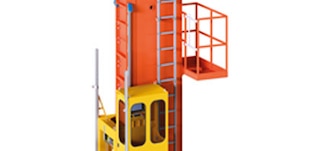

Stacker cranes feature several safety elements for maintenance work

Maintenance safety elements

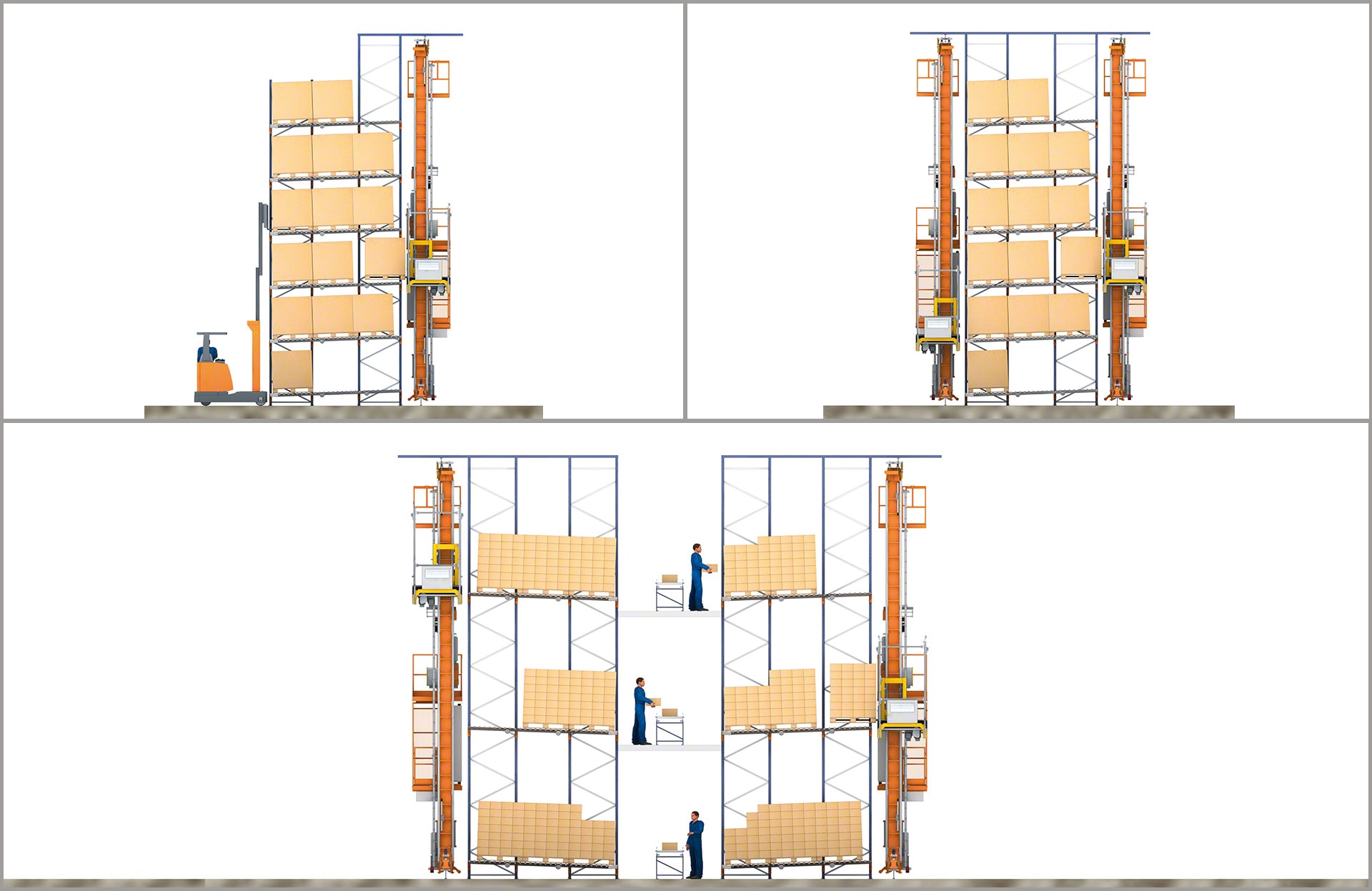

AS/RS stacker cranes are equipped with different safety devices to facilitate maintenance tasks. They include the cabin, anchorage points, lifeline to which the operator’s harness is attached when using the ladder, and maintenance platforms.

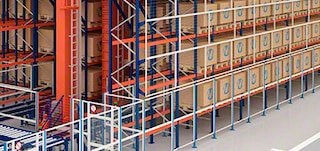

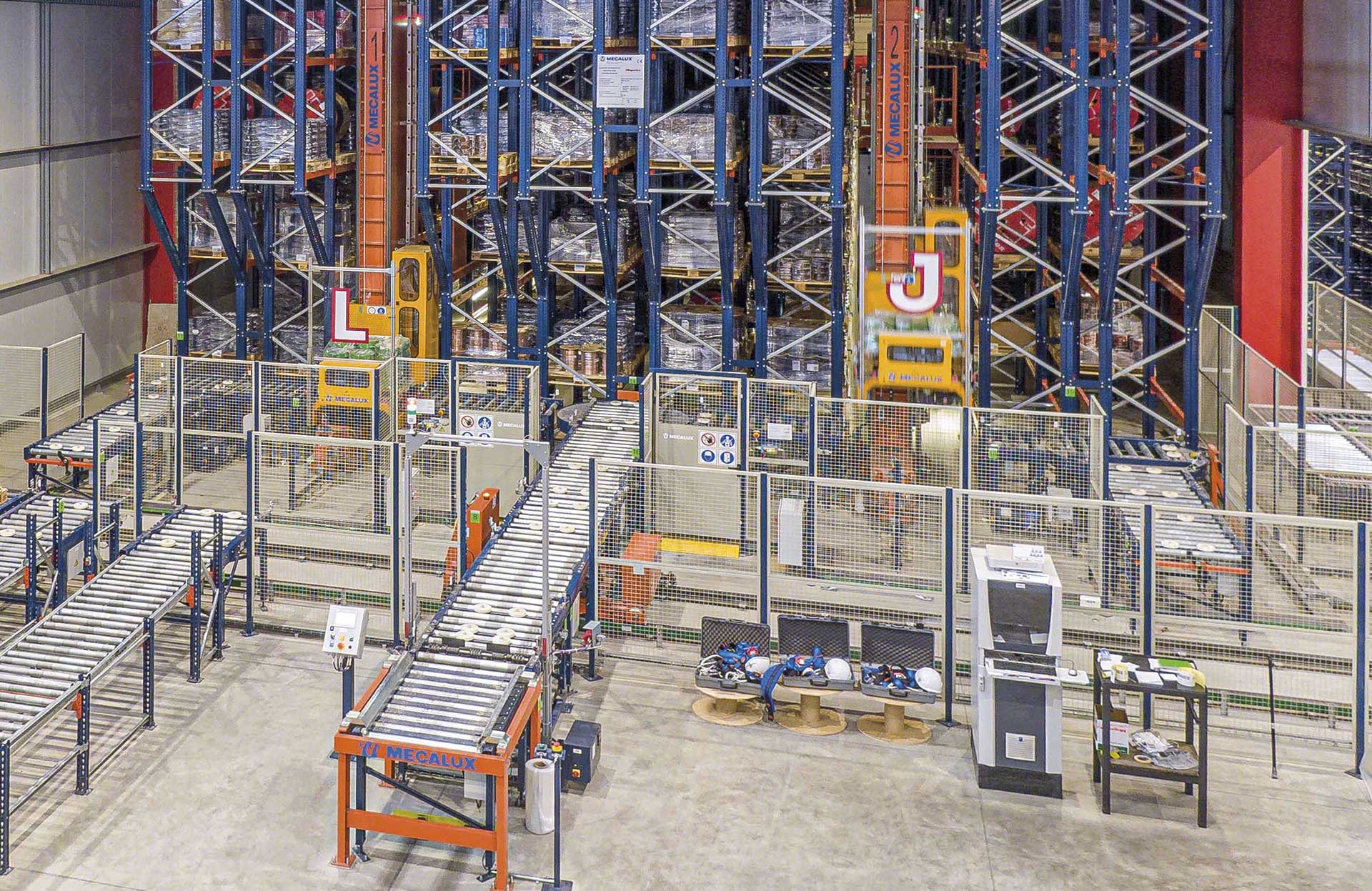

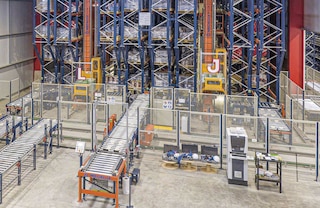

Safety partitioning delineates the stacker crane’s working area

Safety partitioning and safety mesh

Perimeter fences delineate the stacker crane’s operating area, creating a protected space for AS/RS operations. Fall protection netting covers the sides of the racking adjacent to transit areas, preventing accidents resulting from falling goods.

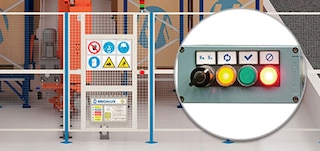

Doors and push-button pads ensure strict aisle access control

Access control

Access doors and push-button pads allow safe entry into aisles for performing maintenance work. The push-button pad features a safety interlock position, and the aisle access procedure is carried out in accordance with the harmonised standard UNE-EN528.

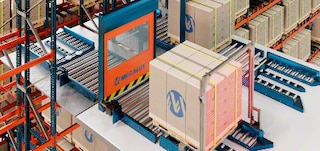

High-speed doors and light curtains prevent people from entering the restricted area

Light curtains and high-speed doors

These elements prevent people from entering through the pallet input/output points of the conveyor lines. The doors open only when a pallet enters or exits the AS/RS. The light curtains differentiate whether what passes through the access point is a load or a person.

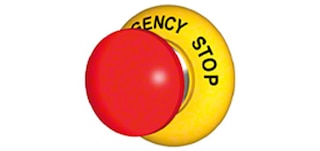

The emergency stop system halts the operation of the stacker crane

Emergency stop system

This halts the operation of the stacker crane. It is activated using standardised push-buttons in the manual control positions and in specific areas of the AS/RS.

Catalogues

Catalog - 3 - Automated-warehouses - en_UN

Automated warehouses (catalogue)

Automated storage solutions

Download
Catalog - 2 - Easy-wms - en_NU

Warehouse management system

Technological innovation for efficient warehousing

Download

FAQs

A stacker crane is a fully automatic machine designed to store and retrieve goods from locations within a racking system.

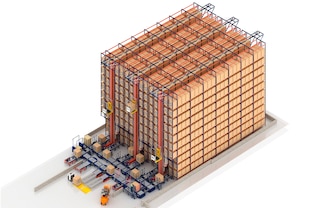

Automating a warehouse with pallet stacker cranes offers multiple benefits. Among them are increased productivity, safe and reliable operations, error elimination and optimisation of available space thanks to their ability to work at significant heights in extremely narrow aisles. Of course, the initial investment in automatic pallet racking solutions is higher than that of conventional storage systems. However, the increased operational capacity associated with automation and the reduction in operating costs (linked to handling equipment, for example) results in a rapid return on investment.

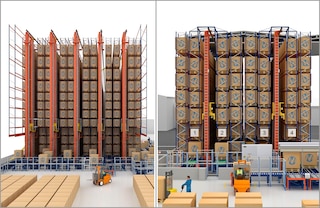

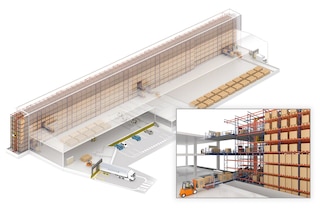

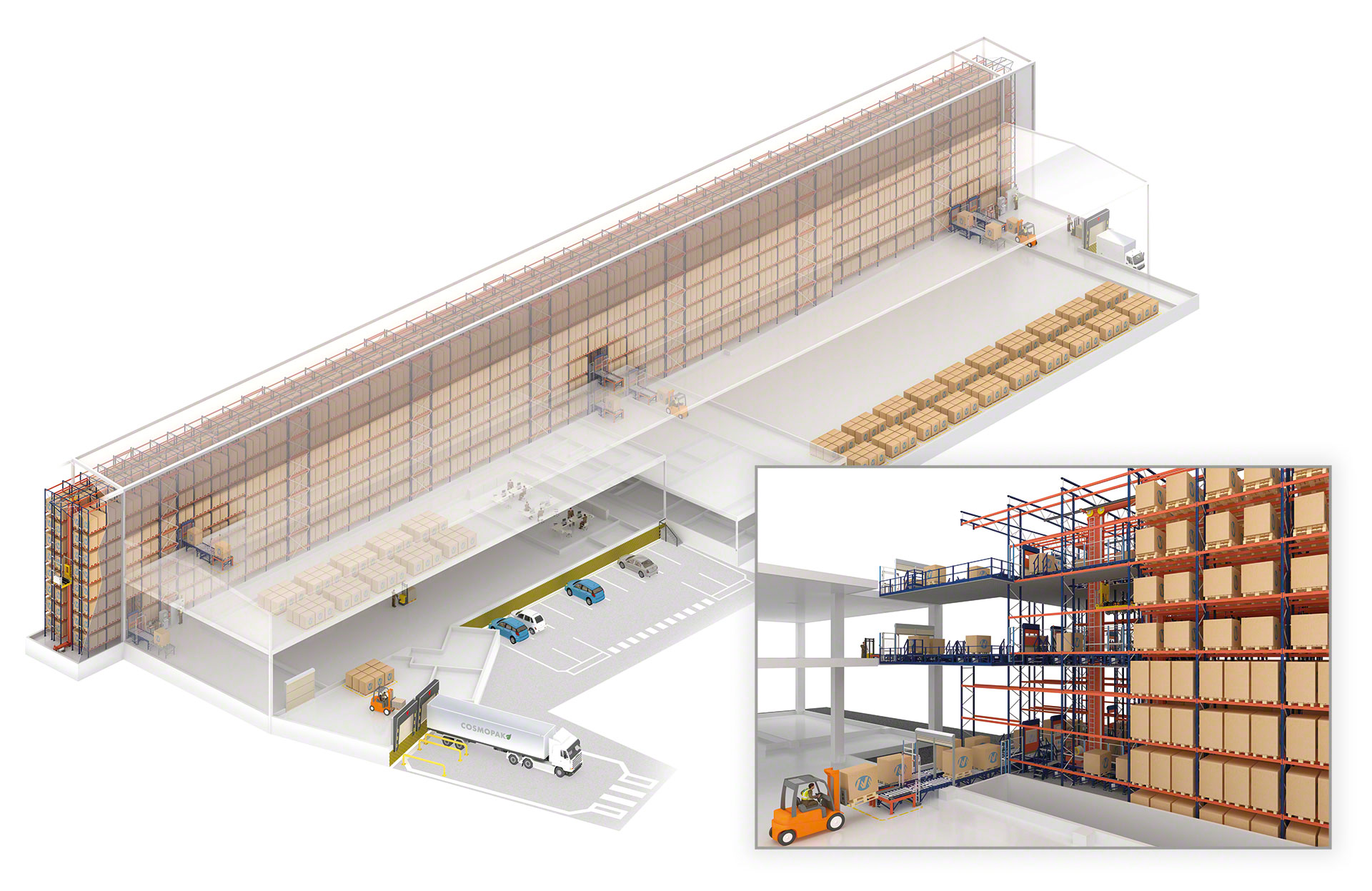

Mecalux stacker cranes can operate with single- or double-deep racking, pallet flow racking or the Automated Pallet Shuttle system.

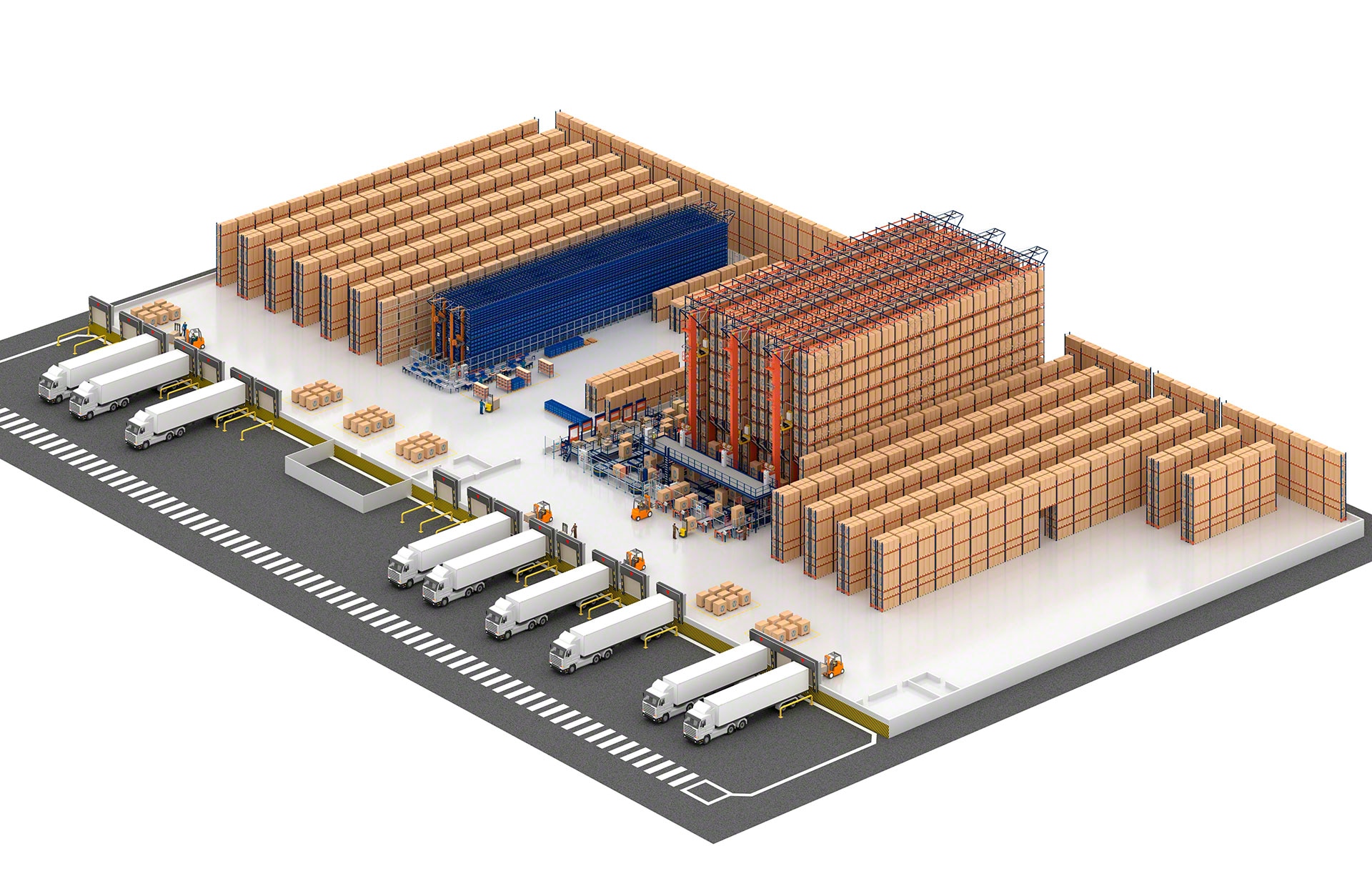

Mecalux’s automatic trilateral stacker cranes enable the quick and cost-effective automation of adjustable pallet racking up to 14 m high. That is, these machines can be integrated into pallet racking that was previously operated with trilateral forklifts, all without modifying the racking structure. Automating other types of conventional storage systems, however, requires the replacement of the existing structures in the facility. Mecalux advises its clients on the design and implementation of the AS/RS that bests meets their needs.

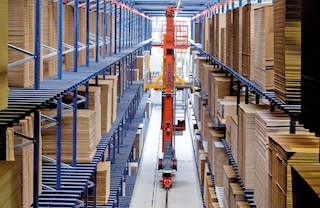

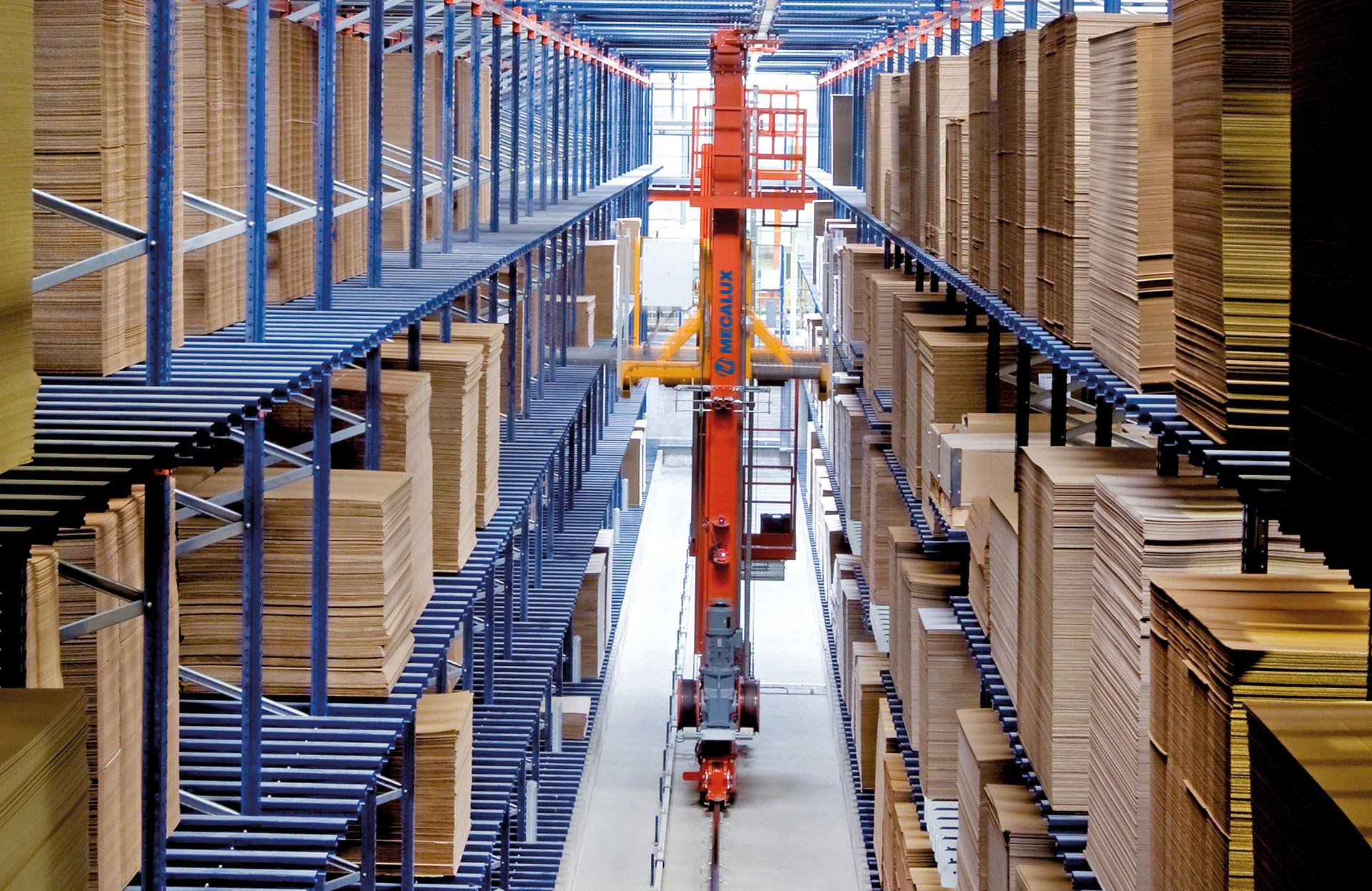

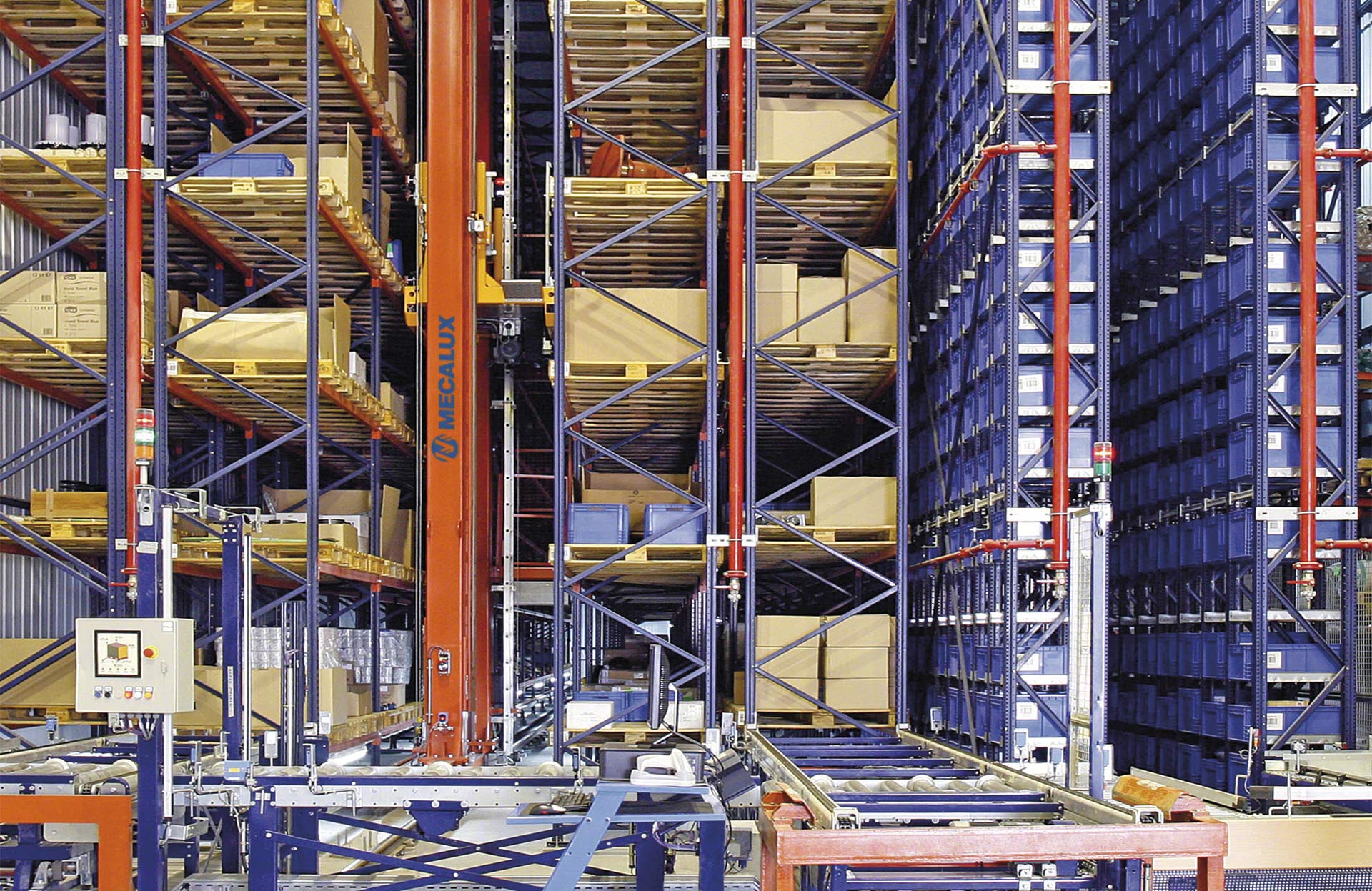

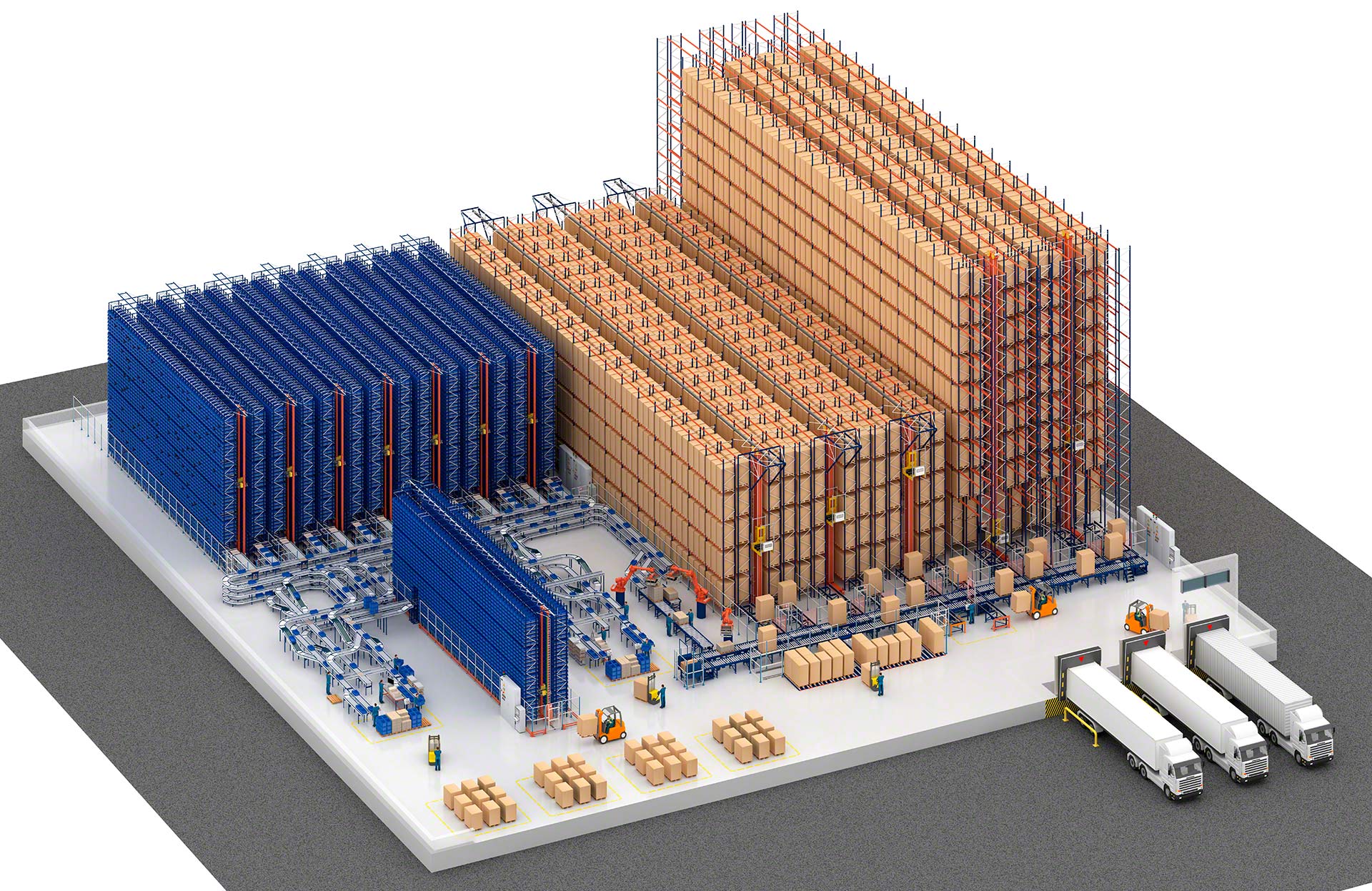

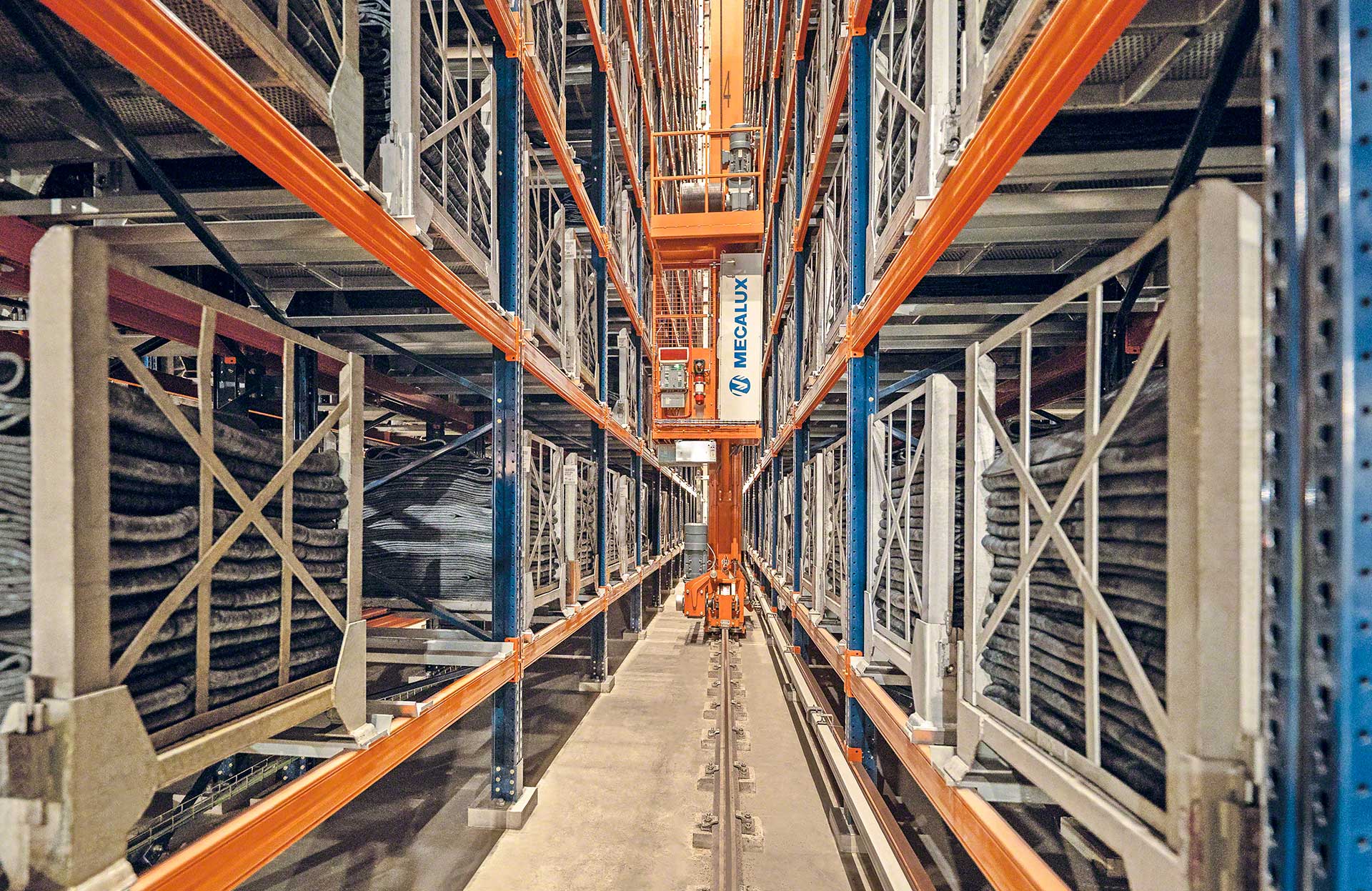

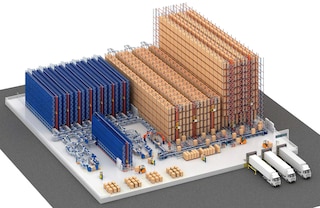

Automatic stacking cranes for pallets are primarily used to move palletised loads in storage and retrieval operations. Additionally, Mecalux offers stacker cranes for boxes. Specially designed for miniload systems, these machines handle smaller unit loads such as boxes, trays and even tyres.

Mecalux stacker cranes are configured to operate in three different modes: automatic (the usual operating mode), semi-automatic (for specific and support operations) and manual (for maintenance work). The stacker crane’s automatic mode is used to execute the commands it receives from the WMS software. For instance, it performs storage and retrieval operations, storage position changes and self-learning of AS/RS locations in this mode.

This is not essential in all scenarios. For companies requiring a relatively low turnover of goods but a high storage capacity, one stacker crane could be shared by several aisles. In such cases, aisle-changing solutions (e.g., a curved-track system or a transfer bridge) can be installed to enable the stacker crane to operate in different aisles. Nevertheless, to maximise efficiency in an AS/RS, it’s ideal to use one stacker crane per aisle.

Yes. Stacker cranes incorporate regenerators that transform the energy generated during descent and deceleration manoeuvres into electricity. This electric energy is leveraged by other elements in the AS/RS, reducing power consumption.

Absolutely. In an AS/RS, access to areas where moving equipment (i.e., stacker cranes, conveyors, etc.) operates is appropriately restricted by wire mesh partitioning and secure access doors.

Yes. Every AS/RS requires two software programs. On the one hand, the warehouse management system (WMS) supervises and controls stock and assigns each unit load a location. On the other, the warehouse control system (WCS) is responsible for sending movement instructions to the stacker crane. Mecalux can supply both software programs.

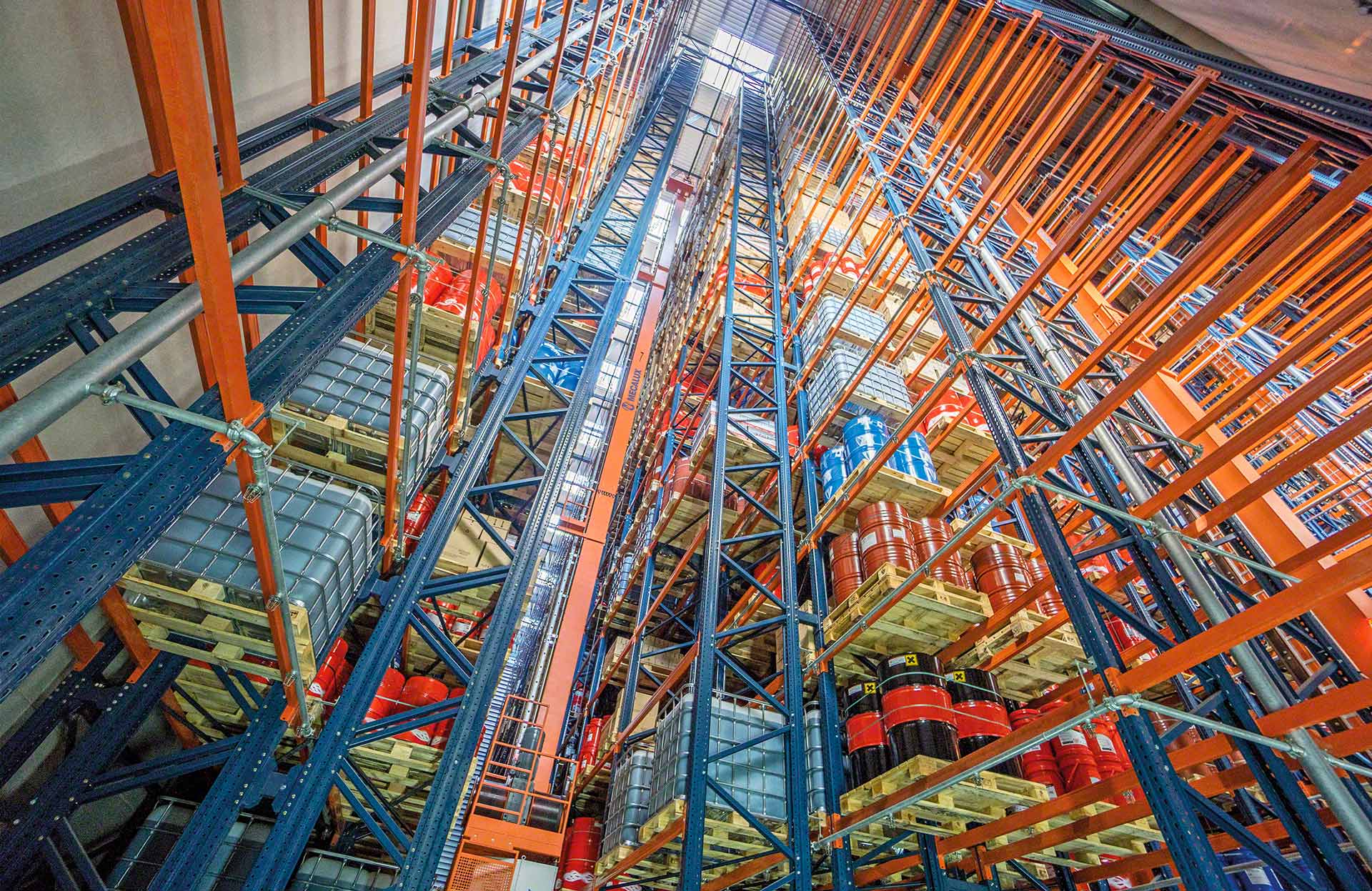

Stacker cranes can operate at heights of up to 45 m.

The maximum load capacity of the stacker crane’s cradle is 1,500 kg for single-deep racking and 1,000 kg for double-deep rack configurations. Stacker crane models equipped with two cradles increase the load capacity to 3,000 kg (1,500 kg per cradle) in single-deep racks and 2,000 kg (1,000 kg per cradle) in double-deep racking.

Stacker cranes can move at a travel speed of up to 160 m/min.

The maximum lifting speed of a stacker crane is 66 m/min unloaded and 54 m/min loaded.

Mecalux stacker cranes can work in temperatures ranging from -30 °C to +40 °C.
